Charakteristische Vorteile
1.Flexibility, even though the project siteup and down,the gabion box will be not damaged.
2.Good resistance,even though the max flow speed is6m/s, the box will keep on working well.
3.Perfect permeability,it is good forsediment control.
4.Roadway and bridge protection、Erosion protection.
-
Gemeinsame Spezifikationen

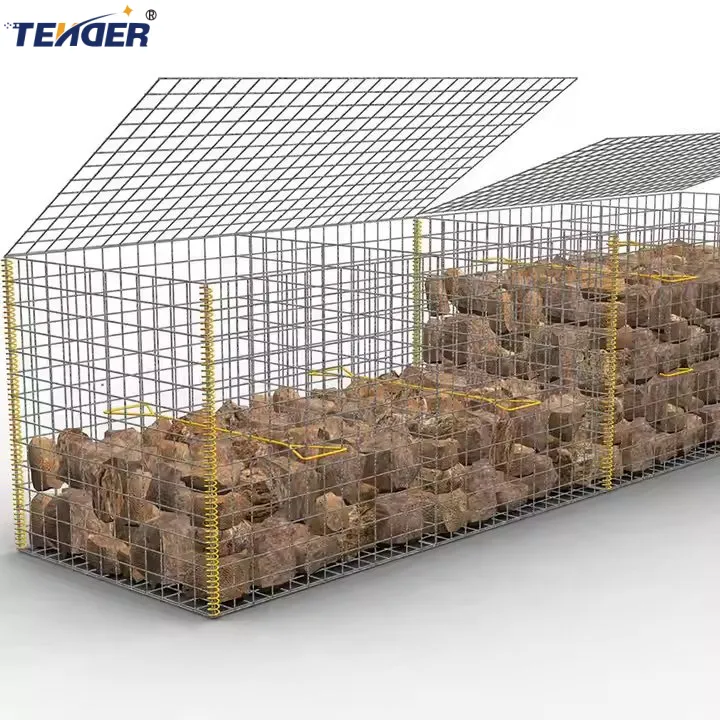

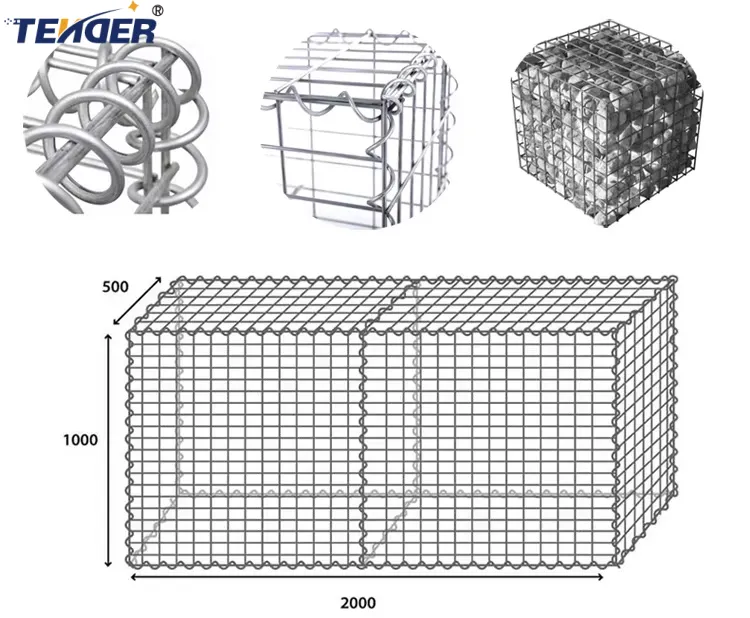

Gabion box
(mesh size):
80*100mm
100*120mm
Mesh Wire diameter
2.7mm
zinc coating:60g,245g, ≥270g/m2
Edge wire diameter
3.4mm
zinc coating:60g,245g, ≥270g/m2
Tie wire diameter.
2.2mm
zinc coating:60g,≥220g/m2

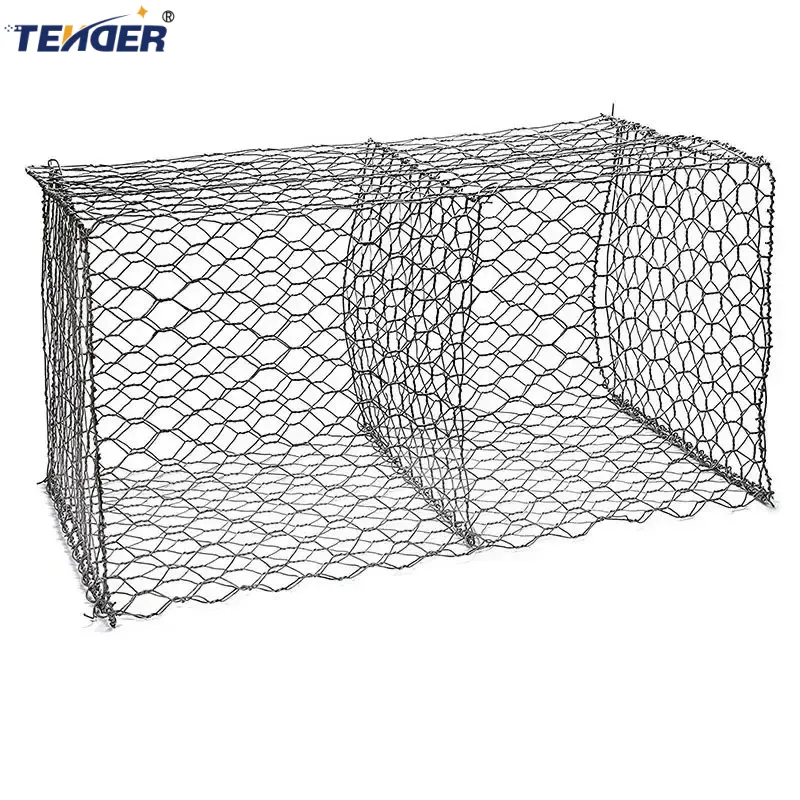

Gabion mattress
(mesh size):
60*80mm
Mesh wire diameter.
2.2mm
zinc coating:60g, ≥220g/m2
Edge wire diameter.
2.7mm
zinc coating:60g,245g, ≥270g/m2
Tie wire diameter.
2.2mm
zinc coating:60g, ≥220g/m2
special sizes Gabion
are available
Mesh wire diameter
2.0~4.0mm
superior quality,competitive price and
considerate service
Edge wire diameter
2.7~4.0mm
Tie wire diameter
2.0~2.2mm
-
Anwendungsbereich
It is widely used in gabion retaining wall、desert gabion、 gabion channel linings、rockfall protection、gabion landscaping、drainage、gabion bank,roadway and bridge protection、erosion protection、 slope paving and weirs、 earth reinforcing structures、hydraulic structures、outfall structures、coastal embankment works、 dams and culverts.
-
