Characteristic advantages
Phosphorus copper mesh is a metal mesh made by weaving phosphorus copper wire through processes such as plain weave and diagonal weave.
The common alloy compositions are:
Copper Cu:~90-94%
Tin Sn:~5-8%
Phosphorus P:<1%
This alloy material combines high strength, good elasticity, and excellent electrical conductivity
-
Common specifications
Range/Description
Mesh count
4 – 400 mesh
Wire diameter
0.025 mm – 1 mm (can be customized)
Width
Commonly 1 meter, customizable
Weave type
Plain weave, twill weave
Item
Mesh (wires/in.)
Wire diameter (in.)
Width of opening (in.)
Open area (%)
TDBR-01
14 × 14
0.019
0.0524
53.9
TDBR-02
36 × 36
0.012
0.158
32.3
TDBR-03
40 × 34
0.01
0
39.6
TDBR-04
50 × 50
0.009
0.011
30.3
TDBR-05
70 × 70
0.006
0.008
33.8
TDBR-06
80 × 80
0.0055
0.007
31.4
TDBR-07
100 × 100
0.0015
0.0085
72.3
TDBR-08
100 × 100
0.0045
0.0055
30.2
TDBR-09
110 × 110
0.004
0.0051
31.4
TDBR-10
120 × 120
0.004
0.0043
26.8
TDBR-11
150 × 150
0.0026
0.0041
37.4
TDBR-12
200 × 200
0.0021
0.0029
33.6
-
Application Area
1.Precision filtration: such as filters for oil, water, and chemical liquids, nozzle filters.
2.Electronics industry: electronic component protection, EMI shielding.
3.Paper industry: pulp screening, dewatering screen.
4.Aerospace/Military Industry: High end equipment that requires non-magnetic materials.
5.Architecture and Decoration: Used for artistic decoration, safety nets, etc
-

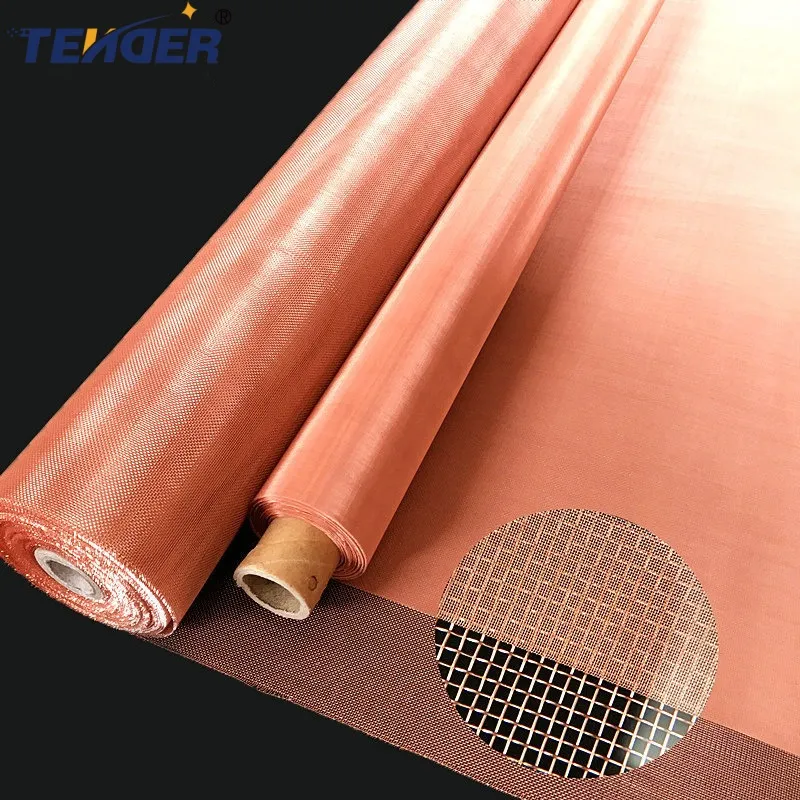

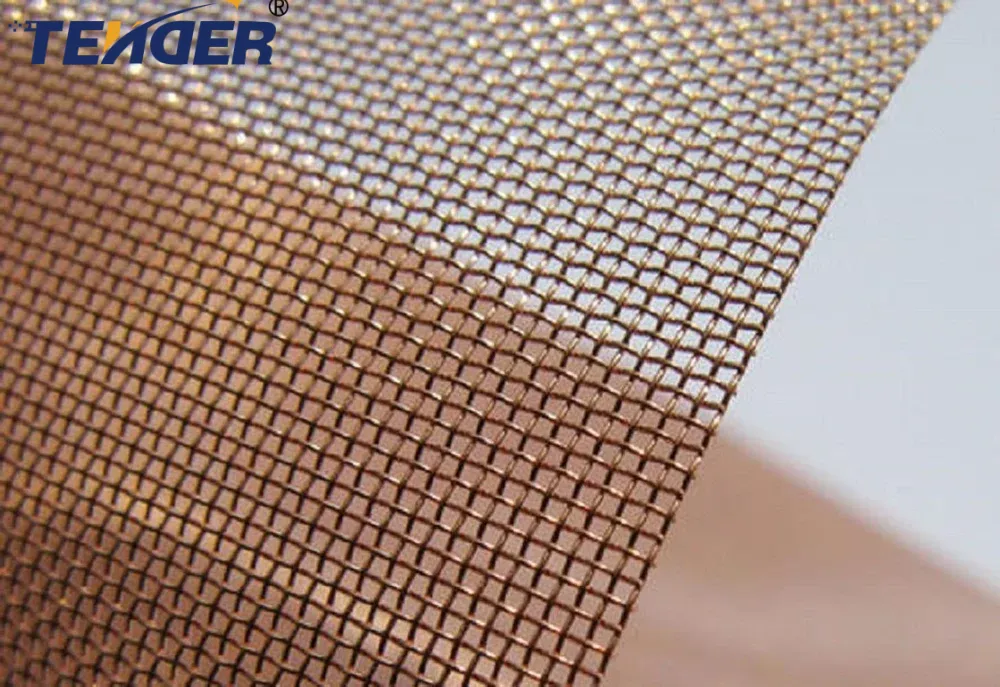

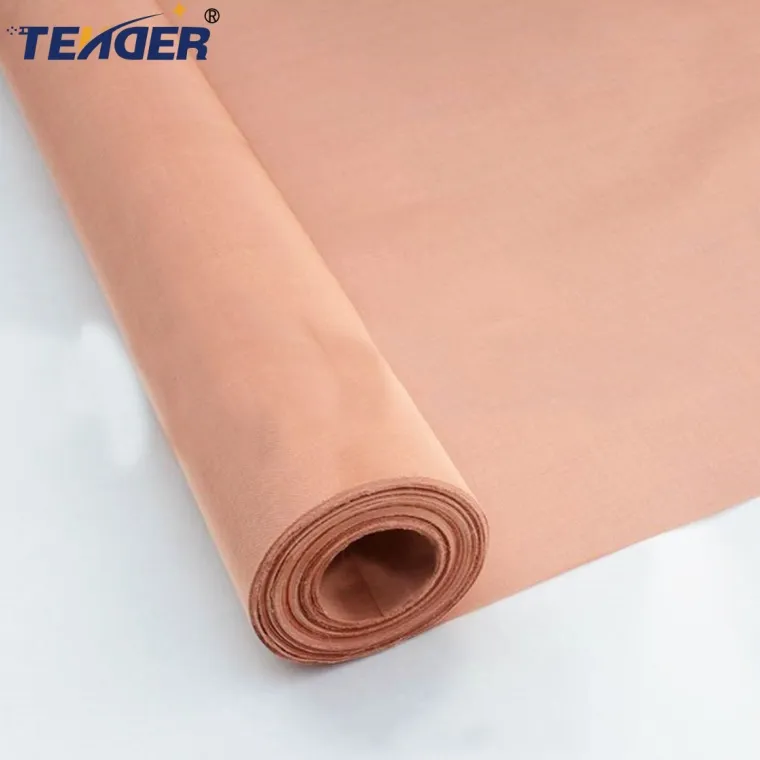

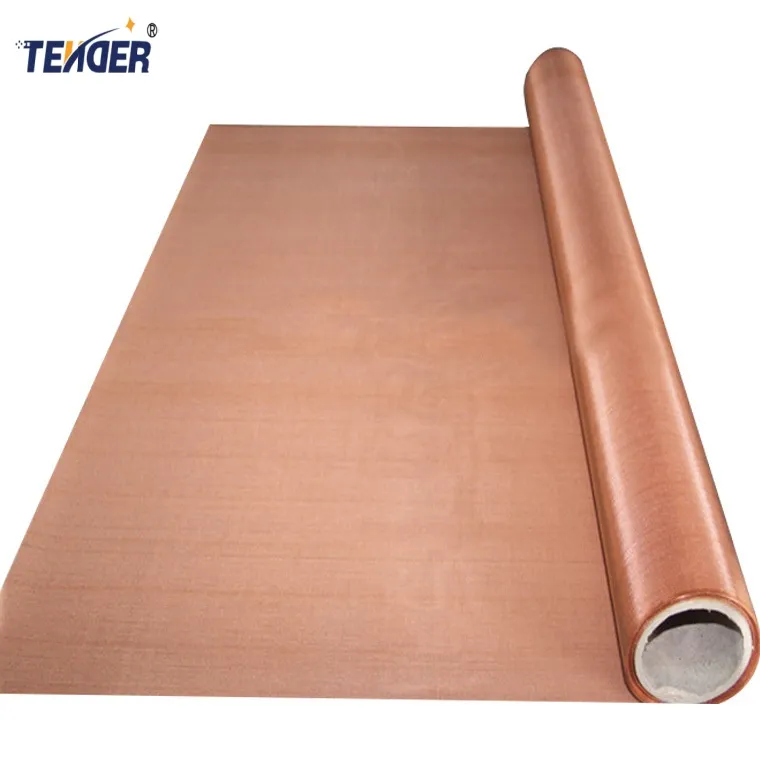

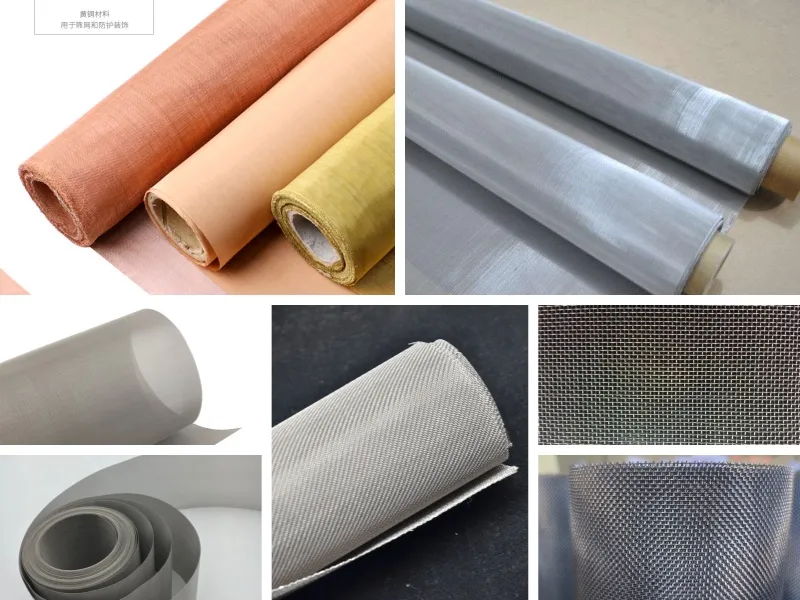

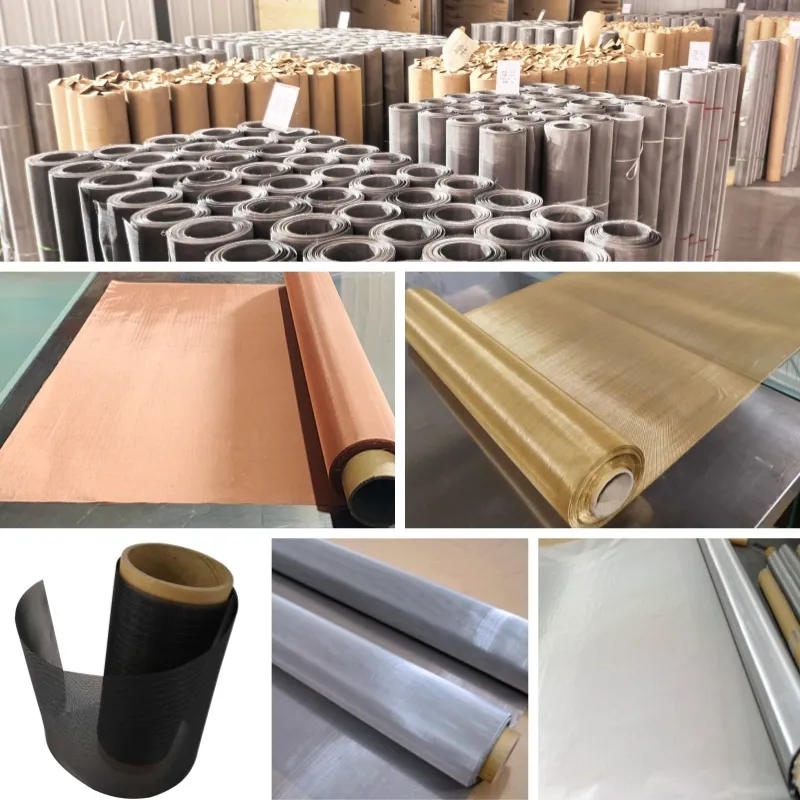

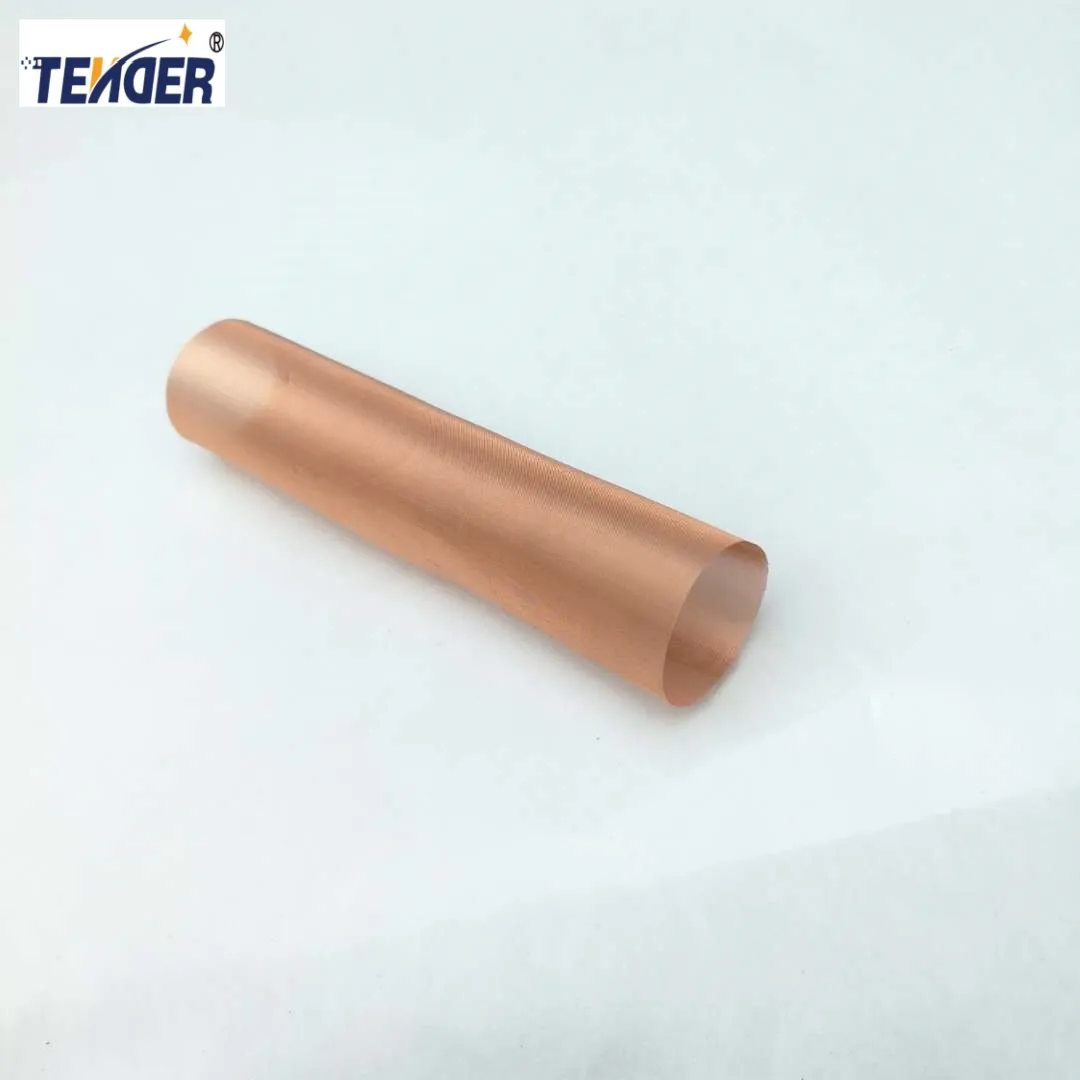

Product Showcase
-

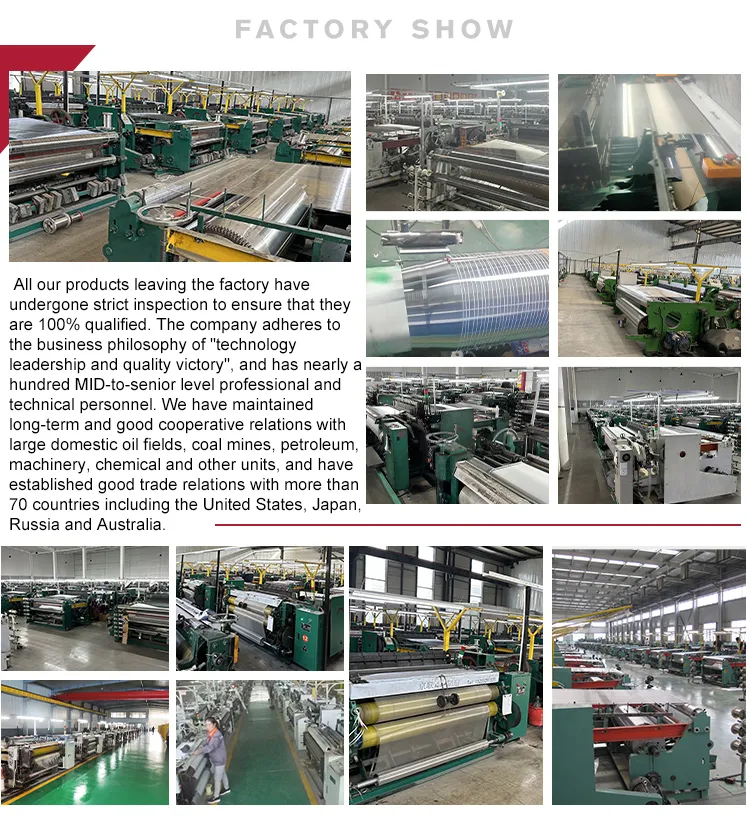

Company Showcase
-
