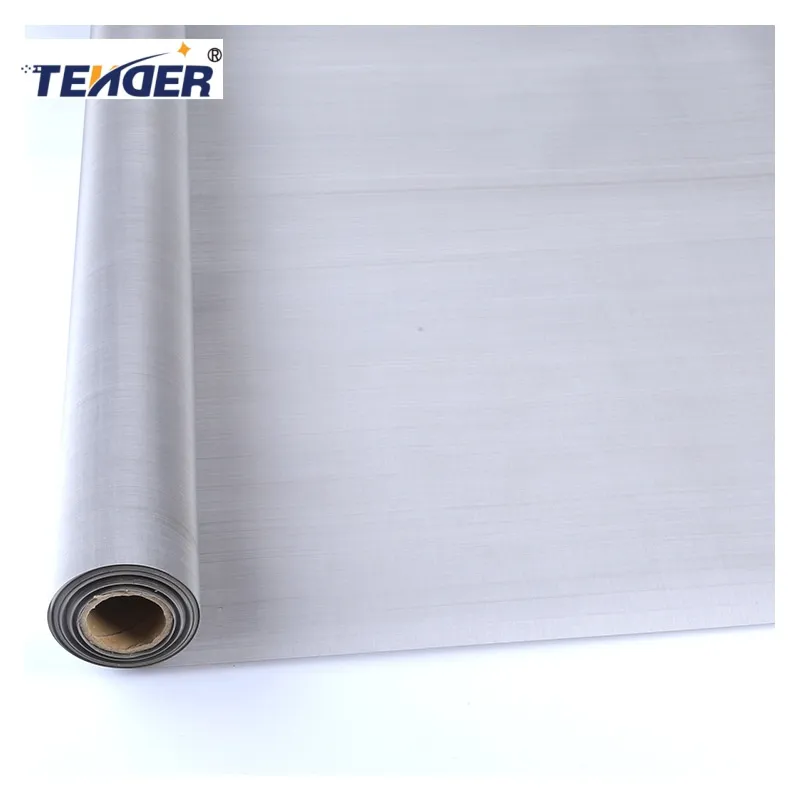

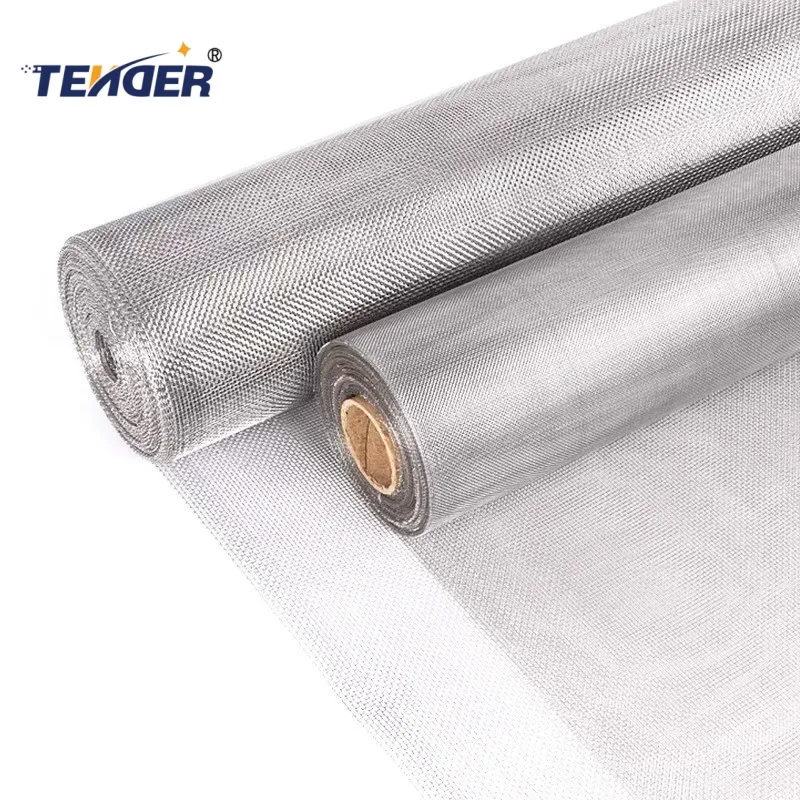

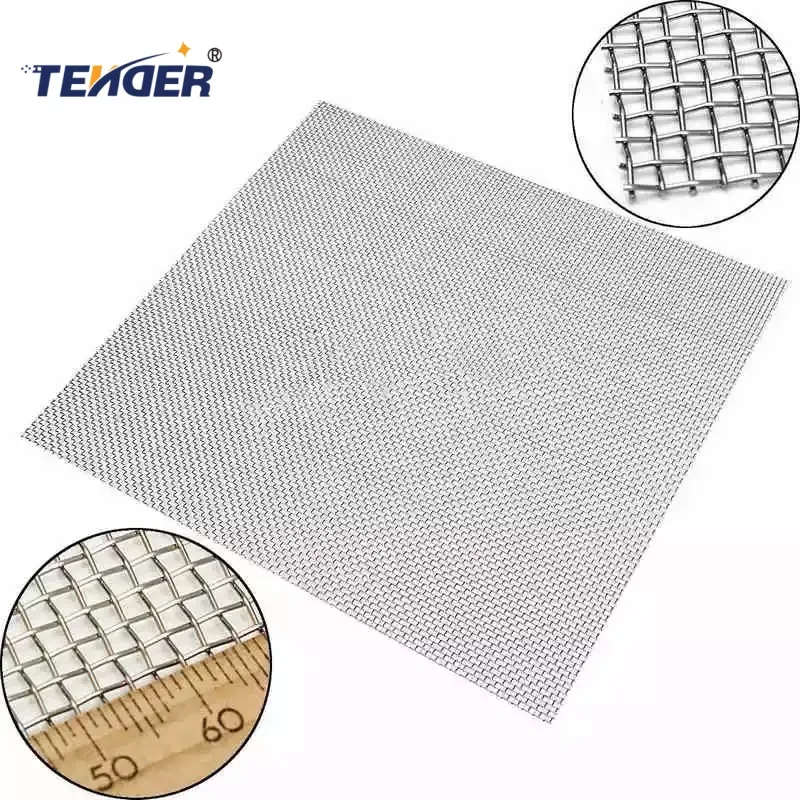

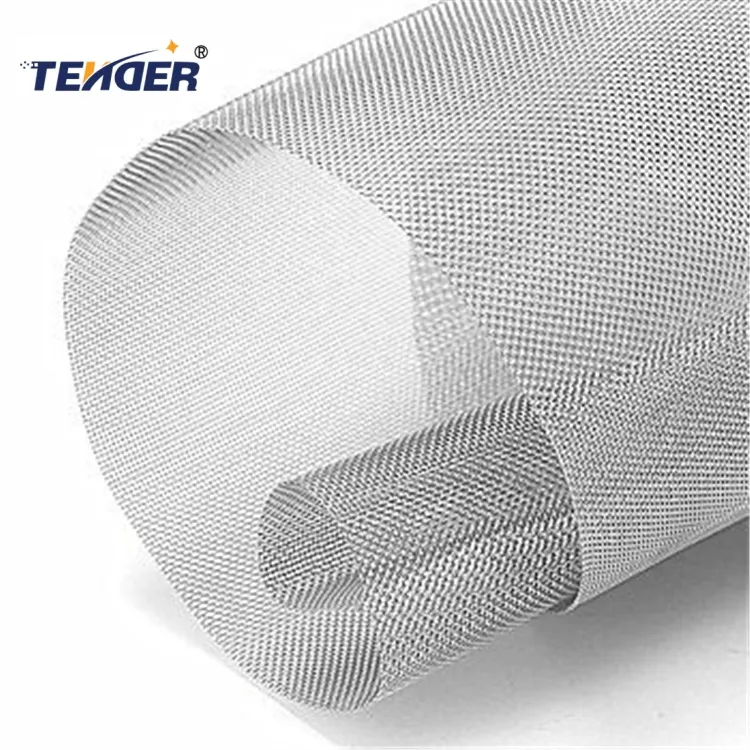

Inconel Woven Wire Mesh

Grade

UNS Number

Main Composition

Features

Inconel 600

N06600

Ni ~72%, Cr ~15%, Fe ~8%

Excellent resistance to heat and oxidation

Inconel 601

N06601

Ni ~61%, Cr ~23%, Al ~1.4%

Outstanding resistance to high-temperature oxidation

Inconel 625

N06625

Ni ~58%, Cr ~21%, Mo ~9%, Nb ~3.6%

Superior corrosion resistance in harsh environments

Inconel 718

N07718

Ni ~52%, Cr ~19%, Nb+Mo+Ti

High strength, excellent fatigue resistance

Mesh Count

Wire Diameter (mm / inch)

Aperture Size (mm / inch)

Weave Type

Typical Applications

10 mesh

0.60 mm / 0.0236"

1.94 mm / 0.0764"

Plain Weave

High-temp filters, chemical screens

20 mesh

0.50 mm / 0.0197"

0.77 mm / 0.0303"

Plain Weave

Heat treatment baskets, acid filtration

40 mesh

0.28 mm / 0.0110"

0.36 mm / 0.0142"

Plain Weave

Exhaust gas filtration, catalyst support

60 mesh

0.18 mm / 0.0071"

0.24 mm / 0.0094"

Twill Weave

Precision chemical filtration

80 mesh

0.15 mm / 0.0059"

0.17 mm / 0.0067"

Plain Weave

Oxidizing environment filtering

100 mesh

0.10 mm / 0.0039"

0.15 mm / 0.0059"

Plain / Twill

Fine filtration at high temperature

150 mesh

0.07 mm / 0.0028"

0.10 mm / 0.0039"

Twill Weave

Super-fine chemical or gas filtration

200 mesh

0.05 mm / 0.0020"

0.08 mm / 0.0031"

Twill Weave

Ultra-fine filtration, aerospace/atomic use
