Characteristic Advantages

Precise size customization

Cutting according to customer drawings or requirements, with high precision, can be controlled within ± 0.1mm;

Can be made into complex shapes such as square, circular, irregular, with edge holes, and with ears;

Support batch size consistency, convenient for automated assembly.

Multiple material options to adapt to different environments

Provide a variety of metal materials (stainless steel, copper, titanium, nickel, iron chromium aluminum, etc.);

Can cope with special environments such as high temperature, high corrosiveness, strong acidity and alkalinity, food hygiene level, and conductivity;

Materials can be selected in accordance with FDA, RoHS and other certified specifications.

Multiple types of mesh, covering a wide range of filtering accuracy

Available in plain weave, twill weave, dense weave, mat weave, etc;

Filter pore sizes range from 1 micron to several millimeters;

Single layer or multi-layer composite mesh can be customized to meet different needs from microfiltration to coarse filtration.

Flexible edge processing methods

Can be used for cutting burrs, edging (stainless steel frame or aluminum ring), spot welding fixation, curling, etc;

Helps to improve safety, prevent shedding, and enhance service life;

Better aesthetics, suitable for terminal product assembly or exposed appearance occasions.

Diverse processing methods to adapt to industrial production

Adopting efficient processing techniques such as CNC cutting, laser cutting, waterjet cutting, and punching molds;

Can achieve small batch customization or large-scale standardized production;

High precision, fast efficiency, and flexible delivery time.

Strong adaptability and wide compatibility with various devices

Can be directly applied as a filtering element in liquid filters, air purifiers, fuel systems, etc;

Can be used as structural components such as mold filters, battery separators, electromagnetic shielding layers, etc;

Easy to replace, assemble, and maintain, convenient for after-sales management.

Common Specifications

Material	Features
Stainless Steel (304, 316, 316L)	Corrosion-resistant, high-temperature tolerance, suitable for most industrial filtration applications
Brass / Copper	Excellent electrical conductivity, non-magnetic, ideal for ESD-sensitive and electrical applications
Nickel Mesh	Acid and alkali resistant, high heat tolerance, suitable for batteries and electrolytic systems
FeCrAl Mesh	High temperature oxidation resistance, used in heating and thermal filtration
Titanium Mesh	Lightweight, corrosion-resistant, used in marine and medical industries
Duplex Steel / Hastelloy / Inconel	For harsh environments requiring extreme corrosion, pressure, or temperature resistance

Item	Description
Size Range	Custom sizes: e.g., 50×50mm, 100×100mm, Ø80mm, 200×300mm, etc.
Thickness	Based on mesh type or layer count, typically 0.05mm – 1mm
Filtration Precision	From 1 micron to several millimeters, depending on mesh type
Layer Options	Single-layer or multi-layer (can be welded or spot-welded)
Surface Treatment	Cleaning, acid-washing, electrolytic polishing, ultrasonic degreasing, edge-wrapping
Packaging	Single packed, stacked in bulk, blister box, anti-dust bag, customized on request

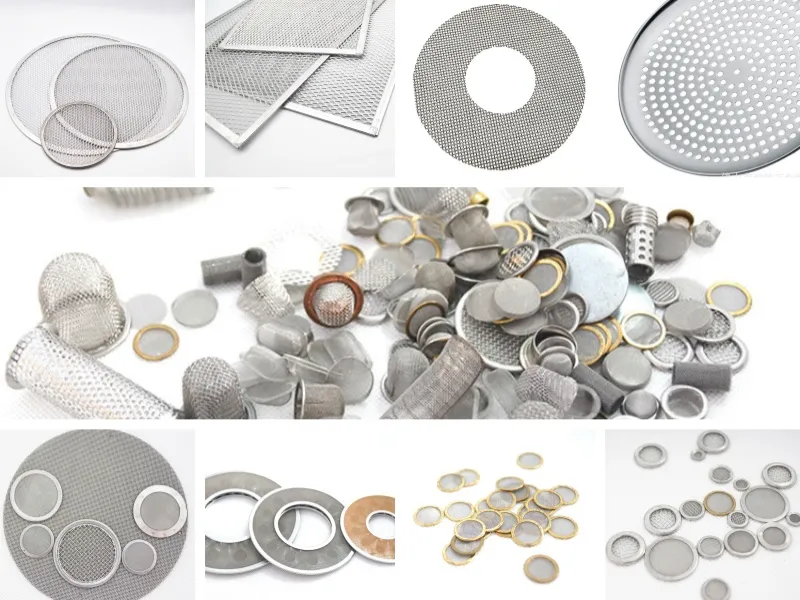

Shape	Application

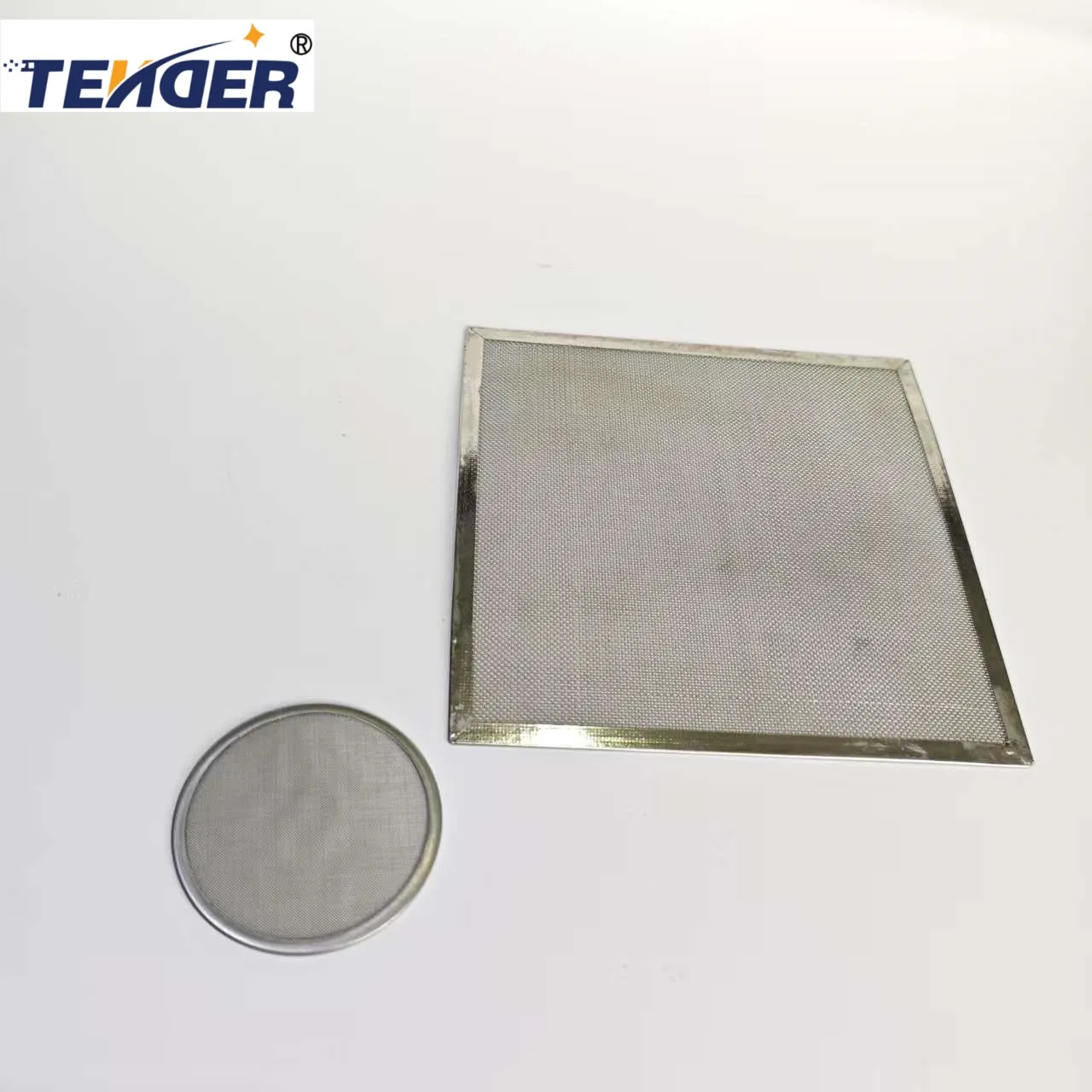

Square / Rectangular	Layered filtration, frame-mounted filters, equipment filters

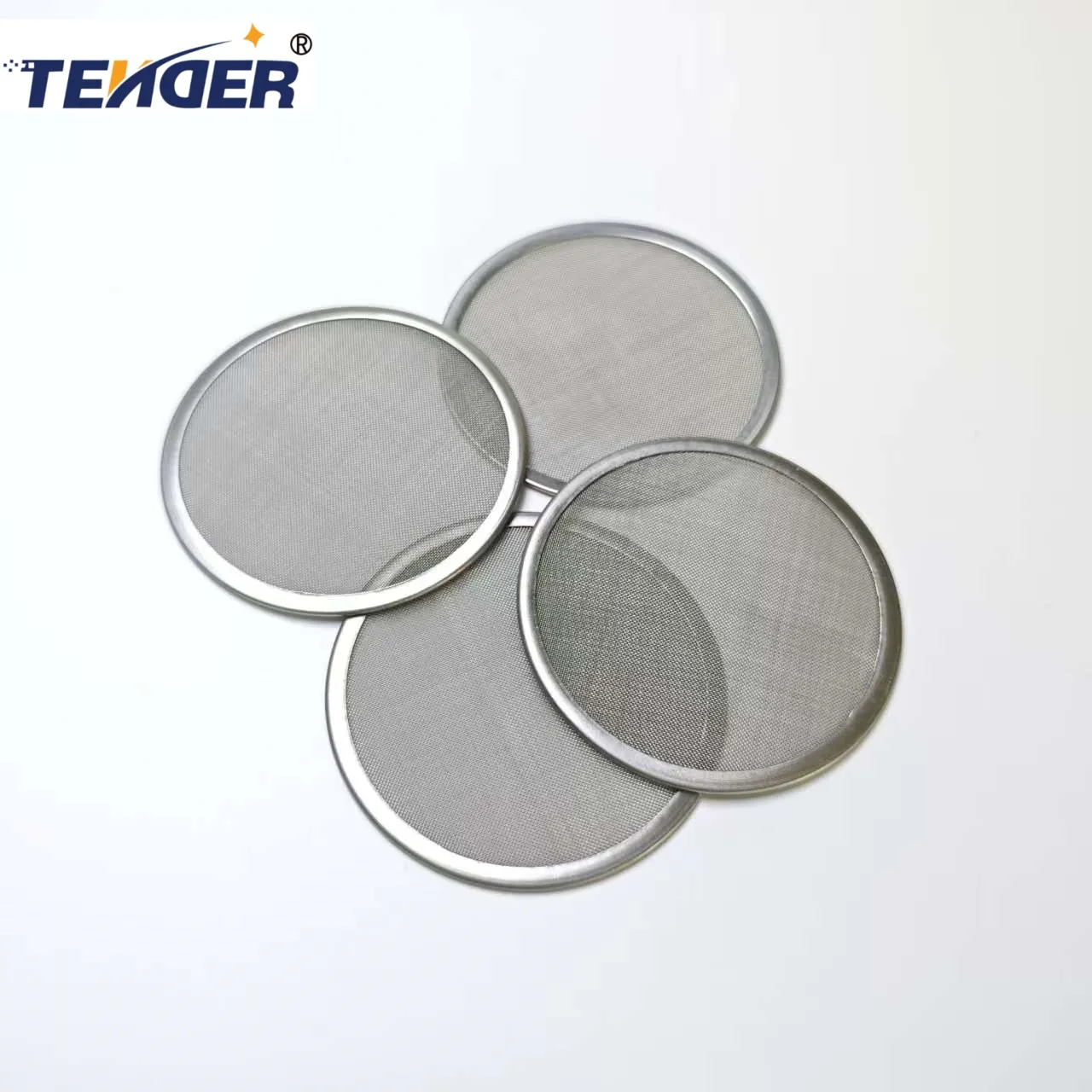

Round / Disc	Filter cartridges, mold vents, pipeline end filters
Oval / Ring	Oil filtration, hydraulic system elements
Custom / Irregular	Tailored to equipment drawings or installation structures

Application Area

Liquid Filtration: Water treatment, beverages, chemical, pharmaceutical industries
Gas Filtration: Air purification, combustion systems, respirators
Solid Separation: Particle separation, debris filtering
Equipment Protection: Fan guards, intake mesh, mechanical barriers
Electronics: EMI shielding, vent protection, dust screens
Injection Molding: Mold screens, anti-blocking filters
New Energy: Fuel cells, battery electrolyte filtration
