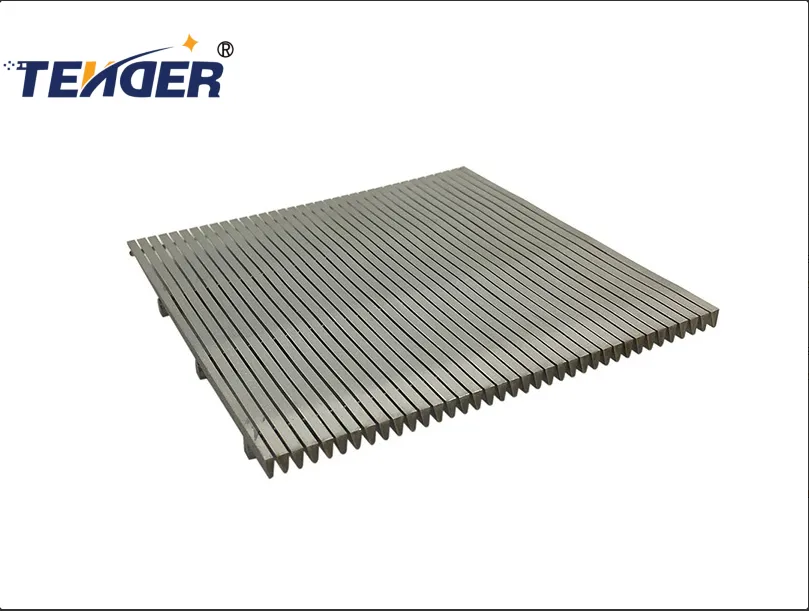

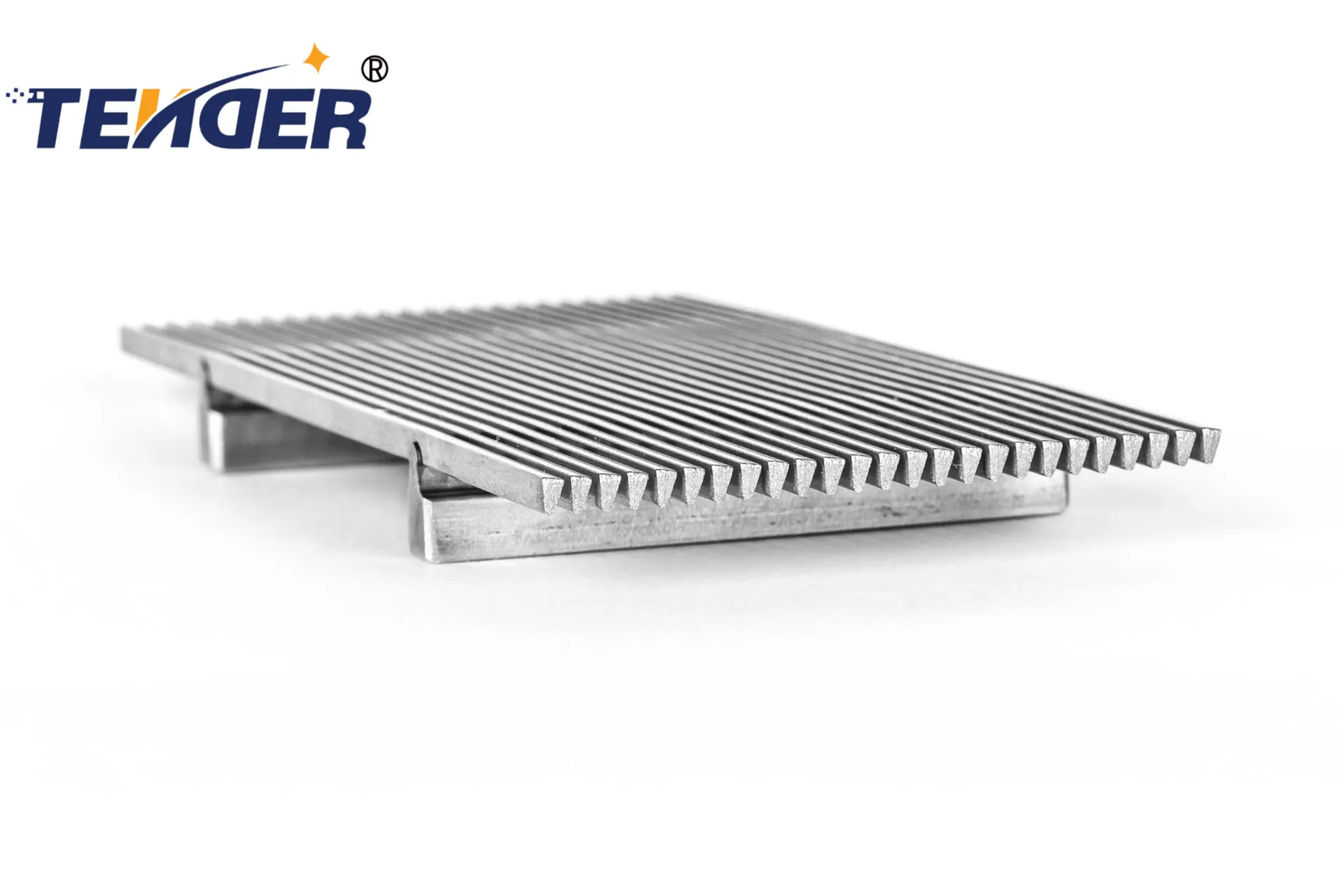

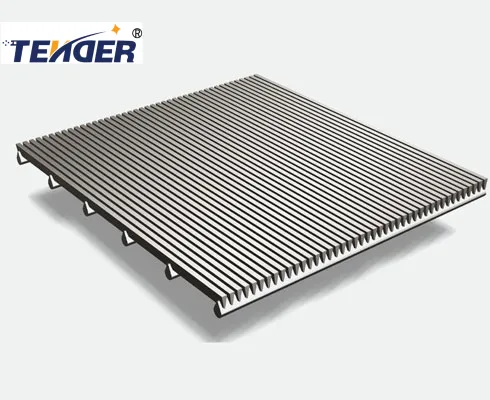

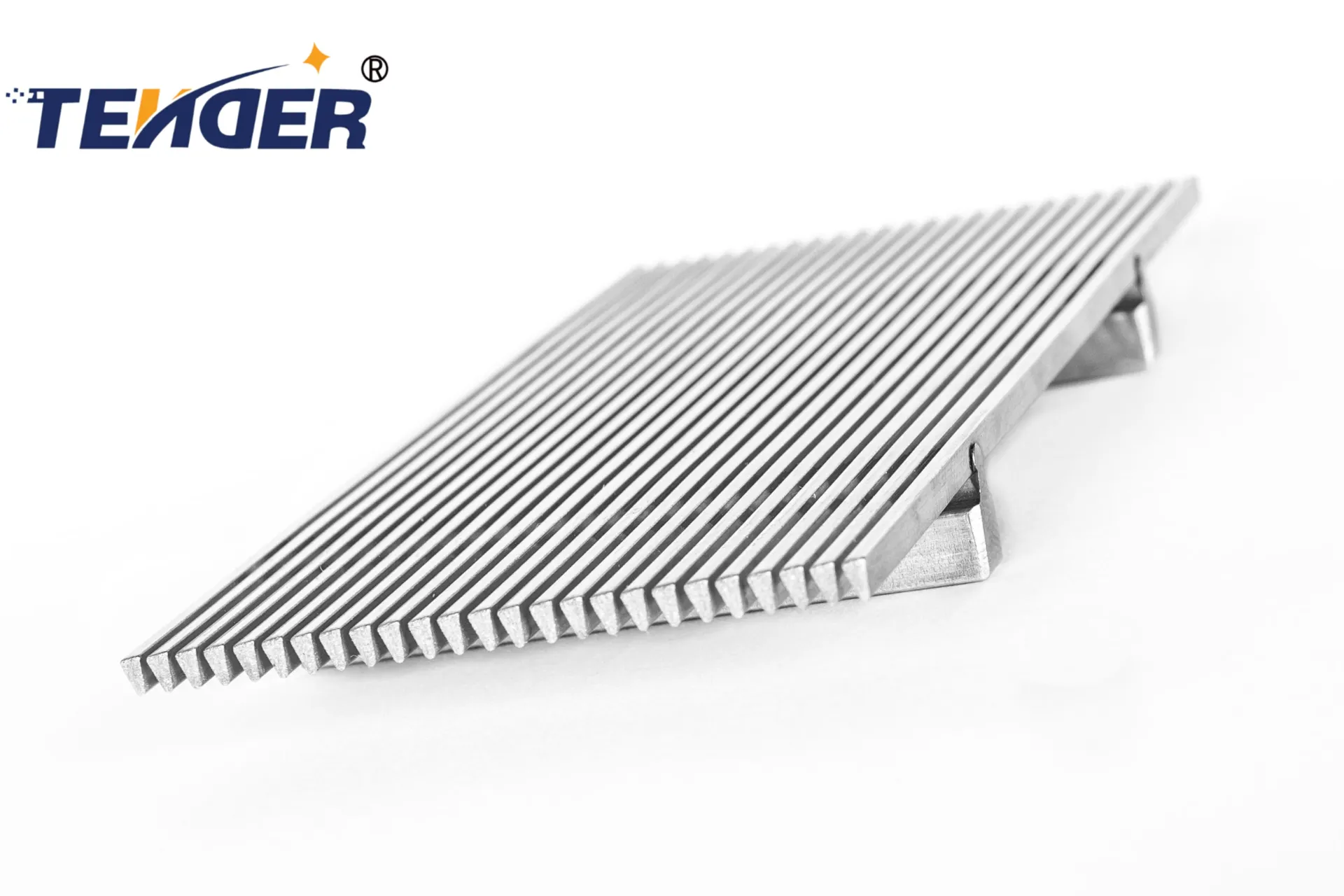

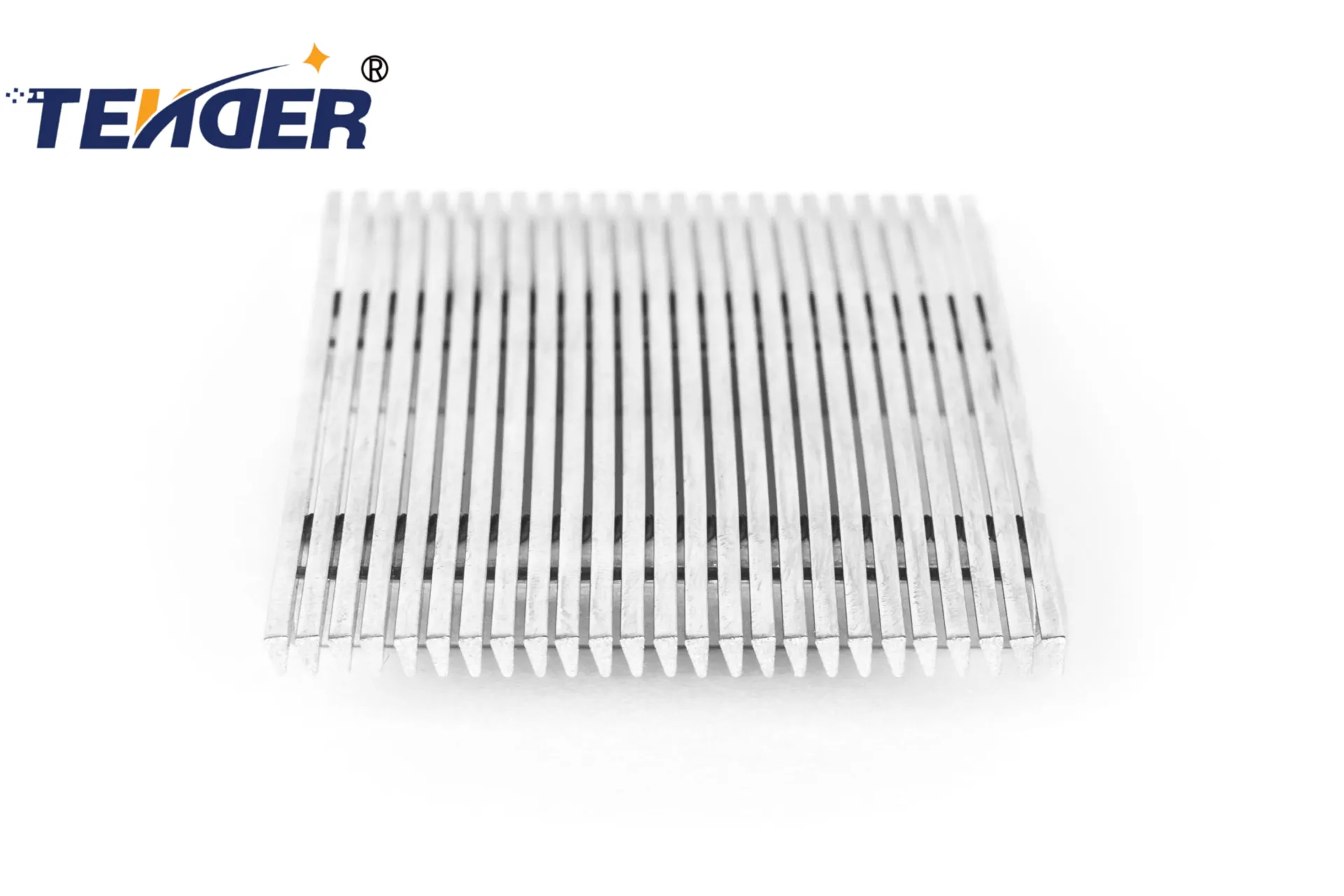

Wedge Wire Filter Panel

Wedge shaped filter plate is a filter plate structure made by welding V-shaped (wedge-shaped) metal wires and support rods (usually trapezoidal or rectangular), commonly used in solid-liquid separation, screening, dehydration, and filtration systems. Its unique wedge-shaped structure gives it continuous gaps, non clogging design, high strength and corrosion resistance, and is widely used in industries such as water treatment, papermaking, food, mining, chemical, and petroleum.

Characteristic Advantages
1. Non blocking structure: The surface of the V-shaped wire gradually narrows to prevent particle blockage;
2. High mechanical strength: The support rod structure is sturdy and can withstand high pressure and mechanical impact;
3. Continuous gap filtration: uniform gap accuracy and excellent fluid permeability;
4. Easy to clean, long lifespan: corrosion-resistant, wear-resistant, suitable for repeated use;
5. Support customization: Size, opening gap, wire width, direction, and material can all be customized

Common Specifications

Available Forms

Flat screen panel
Curved wedge wire screen
Cylindrical wedge wire screen
Conical or basket shape structure
Framed&replaceable panels

Parameter	Specification Range / Options
Material	SS304, SS316L (standard); also: Hastelloy, Monel, Inconel, Titanium
Panel Size	300 × 300 mm, 500 × 1000 mm, 1000 × 2000 mm, or customized
Wedge Wire Shape	V-shaped wire: 0.75 × 1.5 mm, 1 × 2 mm, 1.5 × 2.5 mm, 2 × 3 mm, etc.
Support Rod Shape	Triangle, rectangular, round, wedge (e.g. 2 × 3 mm, 3 × 5 mm)
Slot Opening (Gap Size)	0.05 mm – 10 mm (common: 0.2 mm, 0.3 mm, 0.5 mm, 1.0 mm)
Open Area Ratio	10% – 60% (depends on wire size and gap)
Panel Thickness	3 mm – 15 mm（depending on structure）
Flow Direction	In-to-out or out-to-in (customizable)
Working Temperature	Up to 600°C
Working Pressure	Up to 5 MPa or more
Surface Finish	Pickled, polished, passivated
Mounting Options	Framed, bolted, welded, or removable

Application Area
1. Water treatment (sewage pre filtration, seawater desalination device, reuse water filtration)
2. Food and beverages (syrup, alcohol, starch dehydration, juice extraction equipment)
3. Petrochemical industry (tower internals filtration, blowout preventer, mud circulation)
4. Mining (coal slurry screening, slurry dewatering)
5. Paper making and fiber separation (pulp screening, filtration)
6. Agricultural irrigation system (drip irrigation filter head)
