Characteristic advantages
- Corrosion resistance: Resistant to strong corrosive environments such as seawater, acidity, chloride, etc.
- High tensile strength, suitable for high-pressure or high wear conditions.
- Good wear resistance suitable for filtering abrasive media.
- Long service life, not easily deformed or damaged during long-term use.
-
Common specifications
The commonly used models are
2205（UNS S31803 / S32205）
2507（UNS S32750）
They can replace stainless steel such as 304 and 316 and perform better in corrosive environments
Mesh Count
Wire Diameter (mm / inch)
Aperture Size Approx. (mm / inch)
Weave Type
Typical Applications
10 mesh
0.60 mm / 0.0236"
1.94 mm / 0.0764"
Plain Weave
Particle screening, machine guards
20 mesh
0.50 mm / 0.0197"
0.77 mm / 0.0303"
Plain Weave
Primary filtration of fluids
40 mesh
0.28 mm / 0.0110"
0.36 mm / 0.0142"
Plain Weave
Coarse filtration
60 mesh
0.18 mm / 0.0071"
0.24 mm / 0.0094"
Plain/Twill Weave
Chemical, pharmaceutical filtration
80 mesh
0.15 mm / 0.0059"
0.17 mm / 0.0067"
Plain Weave
Powder filtration
100 mesh
0.10 mm / 0.0039"
0.15 mm / 0.0059"
Plain/Twill Weave
Fine filtration
150 mesh
0.07 mm / 0.0028"
0.10 mm / 0.0039"
Twill Weave
Precision filtration
200 mesh
0.05 mm / 0.0020"
0.08 mm / 0.0031"
Twill Weave
Ultra-fine and gas filtration
-
Application Area
- Marine engineering: such as seawater desalination filters, marine inlet filters.
- Petroleum and natural gas: used for screening, filtering, catalyst support, etc.
- Chemical equipment: reactor internal structure, filter elements.
- Paper, food, and pharmaceutical industries: filtration processes with high requirements for cleanliness and corrosion resistance.
-

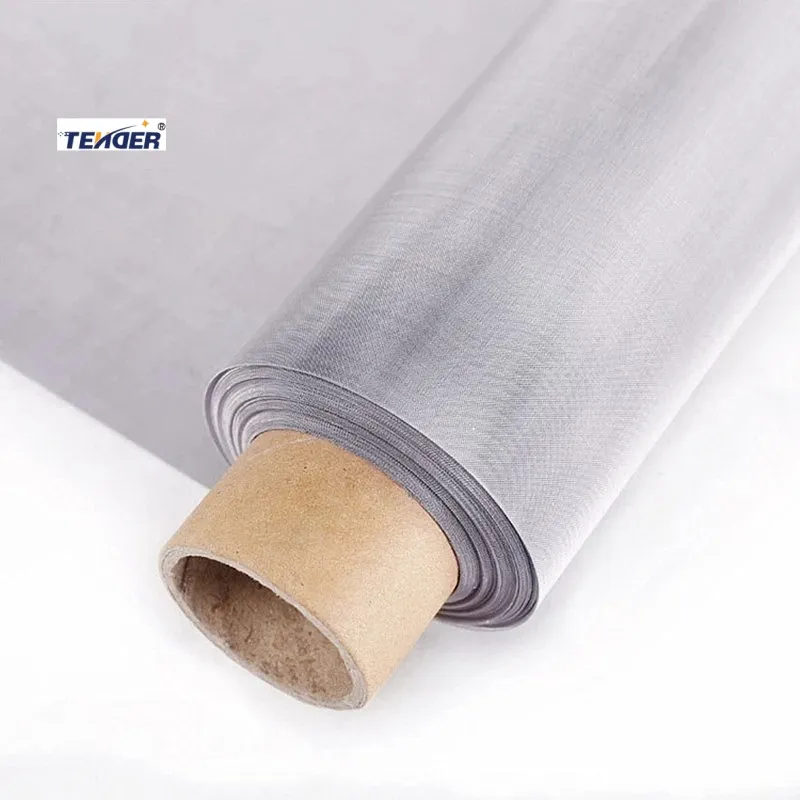

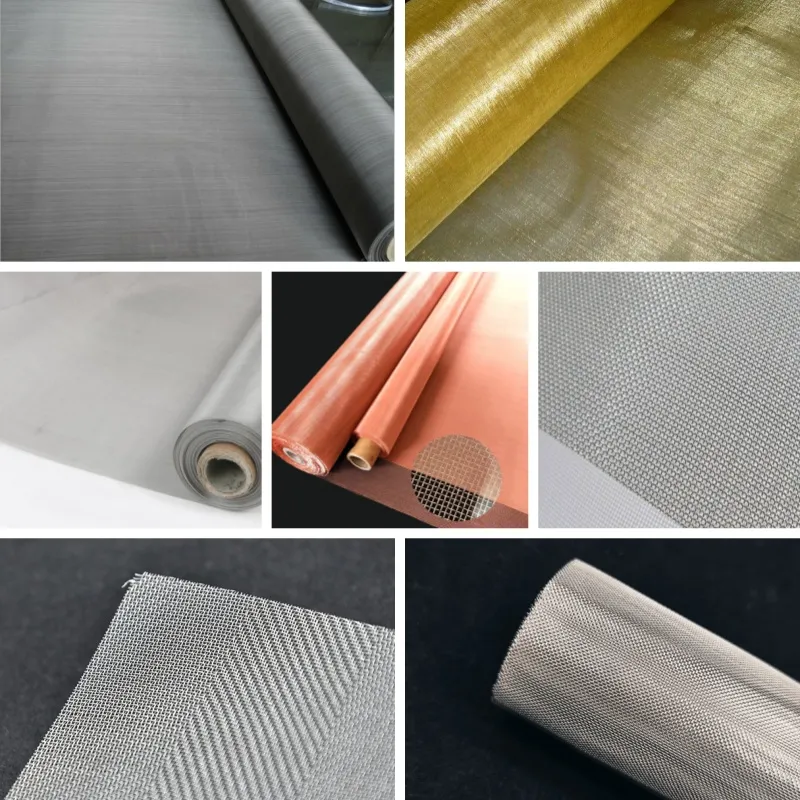

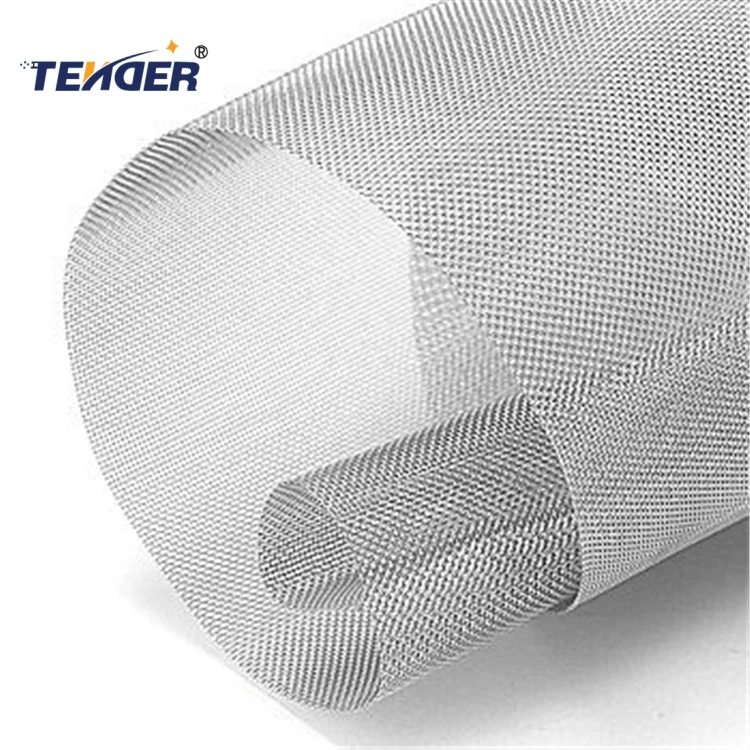

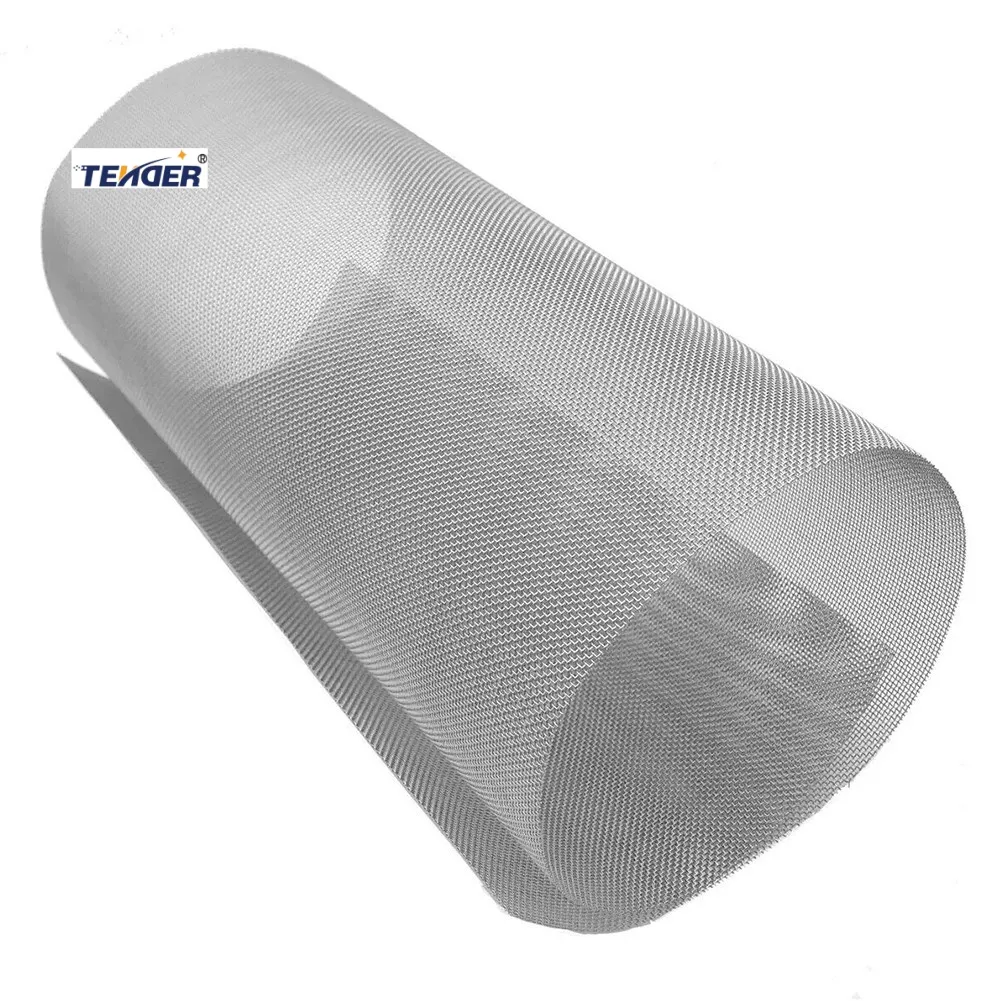

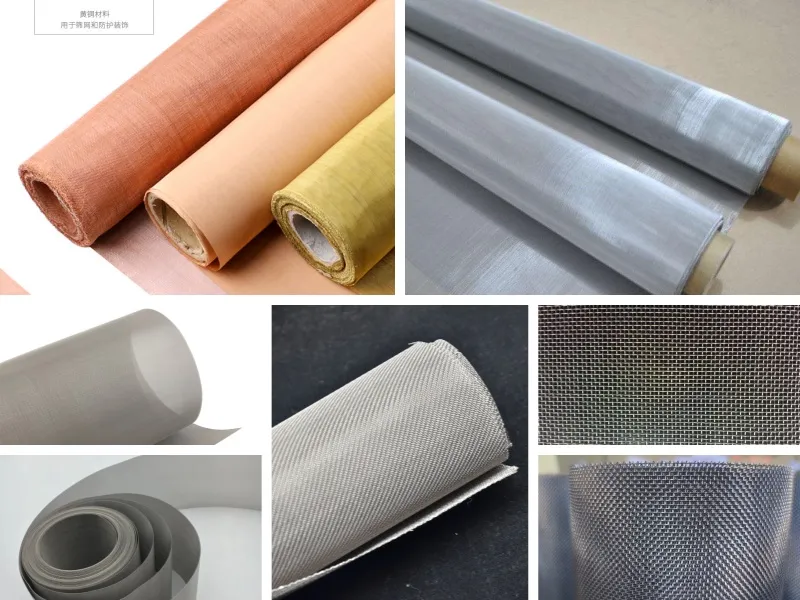

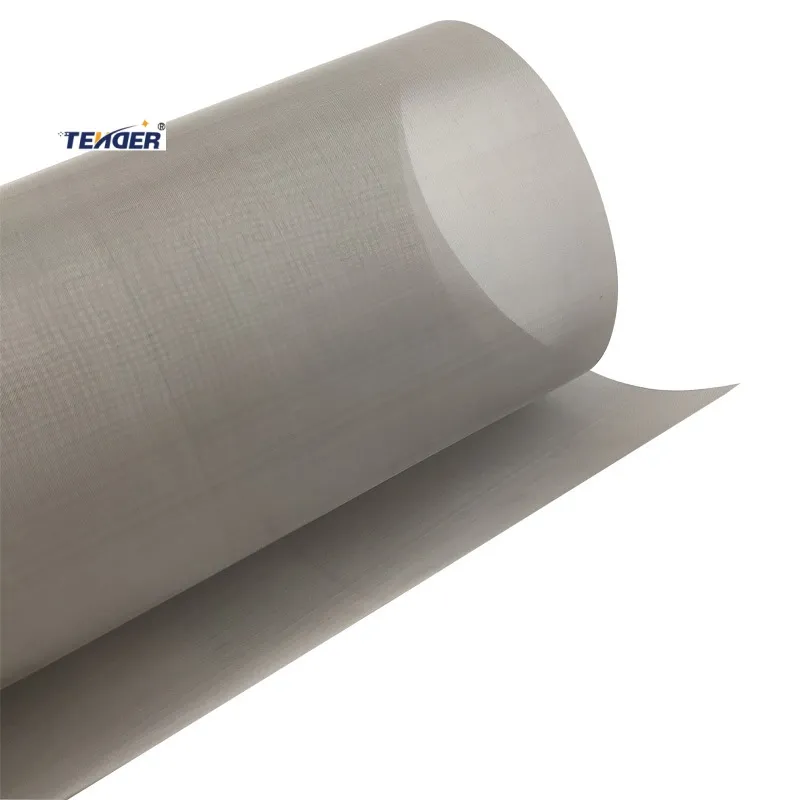

Product Showcase
-
