Characteristic Advantages
Compared to standard woven mesh, Dutch weave wire mesh offers superior filtration performance and durability. It is especially suitable for applications where fine particle separation and high pressure resistance are required.
Dutch weave wire mesh is an essential material for industries demanding precision filtration and long-lasting performance. With its unique structure and versatile applications, it remains a reliable choice for modern industrial processes.
Key Features
High Filtration Precision
The tight weave structure allows for excellent particle retention, making it suitable for filtering very fine materials.
Strong Mechanical Strength
The use of thicker warp wires enhances durability and resistance to pressure.
Excellent Corrosion Resistance
Commonly made from stainless steel, it performs well in harsh environments.
Smooth Surface
Especially in twill Dutch weave, the surface is smoother, reducing clogging risks.
Long Service Life
Resistant to wear, heat, and chemical corrosion, ensuring extended usability. -
Common Specifications
Plain Dutch Weave Wire Mesh Twill Dutch Weave Wire Mesh Mesh/Inch
(warp×weft)Wire Dia.
warp×weft
(mm)Reference
Aperture
(um)Effective
area%Mesh/Inch
(warp×weft)Wire Dia.
warpx weft
(mm)Reference
Aperture
(um)Effective
area%7 x 44 0.71x0.63 315 14.2 20x250 0.25x0.20 119 17.6 12×64 0.56×0.40 211 16 20x200 0.35x0.28 118 12.1 12×76 0.45×0.35 192 15.9 24x300 0.28x0.18 110 19.6 10×90 0.45×0.28 249 29.2 20x150 0.45x0.35 100 7.5 8 x 62 0.63x0.45 300 20.4 30x340 0.28x0.16 89 17.9 10 x 79 0.50x0.335 250 21.5 30x360 0.25x0.15 80 17.0 12 x 89 0.45x0.315 212 20.6 30x250 0.25x0.20 78 11.2 14×88 0.50×0.30 198 20.3 40x560 0.18x0.10 70 23.5 14 x 100 0.40x0.28 180 20.1 40x400 0.19x0.12 63 15.4 16 x 100 0.40x0.28 160 17.6 50x600 0.12x0.09 50 17.2 17 x 125 0.35x0.25 160 23 80x700 0.11x0.08 30 9.8 18 x 112 0.35x0.25 140 16.7 80x800 0.10x0.07 25 12.2 20 x 140 0.315x0.20 133 21.5 90x760 0.10x0.07 25 9.6 20 x110 0.35 x 0.25 125 15.3 200x600 0.07x0.05 23 12 22 x 120 0.315x0.224 112 15.7 100x850 0.10x0.063 22 10 24 x 110 0.35×0.25 97 11.3 100x760 0.10x0.071 20 7.4 25 x 140 0.28x0.20 100 14.6 130x1100 0.07x0.05 17 9.5 30 x 150 0.25x0.18 80 13.6 165x800 0.07x0.05 15 13.5 35 x 175 0.224x0.16 71 12.7 165x1400 0.063x0.04 13 8.8 40 x 200 0.20x0.14 60 12.5 200x1400 0.050x0.032 10 9.2 45 x 250 0.16x0.112 56 15 250x1600 0.05x0.032 8 3.8 50×280 0.16×0.09 55 20 280x2200 0.036x0.025 7 7.2 60 x 270 0.14x0.10 39 11.2 300x2100 0.036x0.025 6 6 70 x 390 0.112x0.071 40 16.2 325x2300 0.036x0.025 4 4.2 80×400 0.125×0.063 32 16.6 400x2800 0.03x0.018 3 4.7 -
Application Area
Dutch weave wire mesh is widely used across various industries due to its high performance:Industrial FiltrationUsed in chemical processing, petroleum refining, and pharmaceutical industries for liquid and gas filtration.Hydraulic SystemsApplied in filters to remove impurities and protect equipment.Food ProcessingEnsures safe and efficient filtration in food and beverage production.Plastic and Rubber IndustryUsed in extrusion processes to filter molten materials.Aerospace and AutomotivePlays a role in precision filtration systems requiring high reliability. -

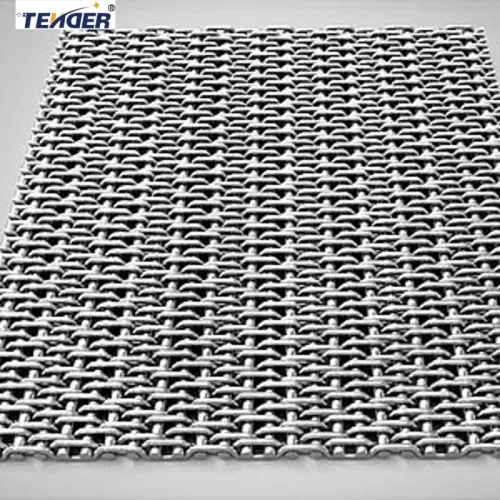

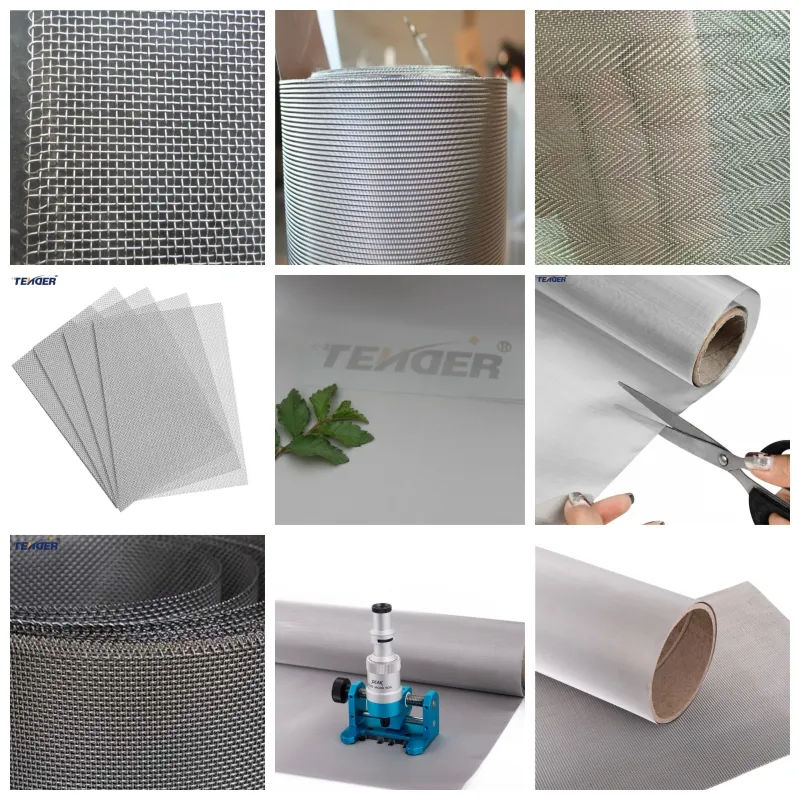

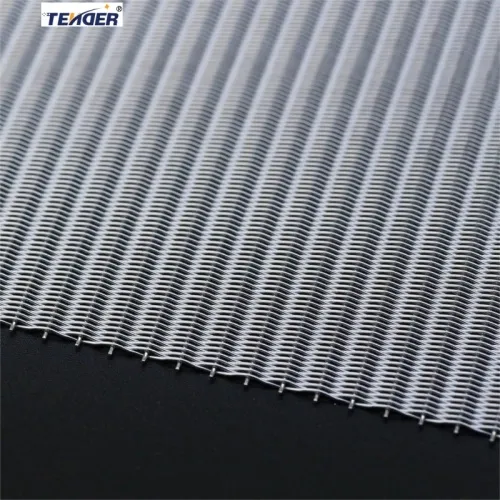

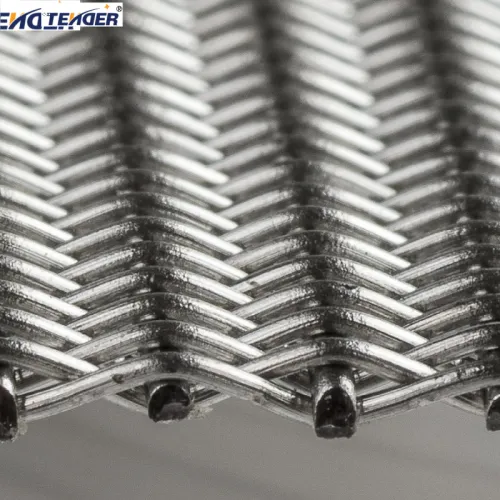

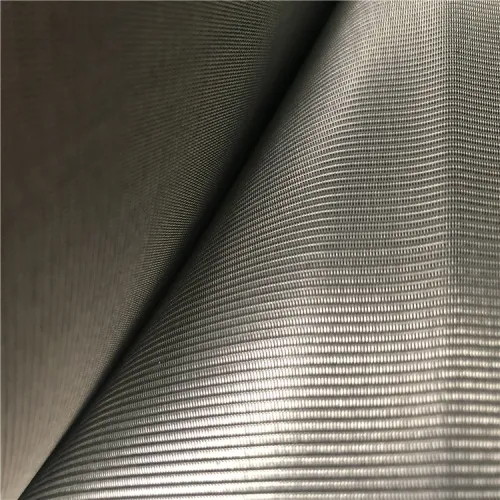

Product Showcase
-

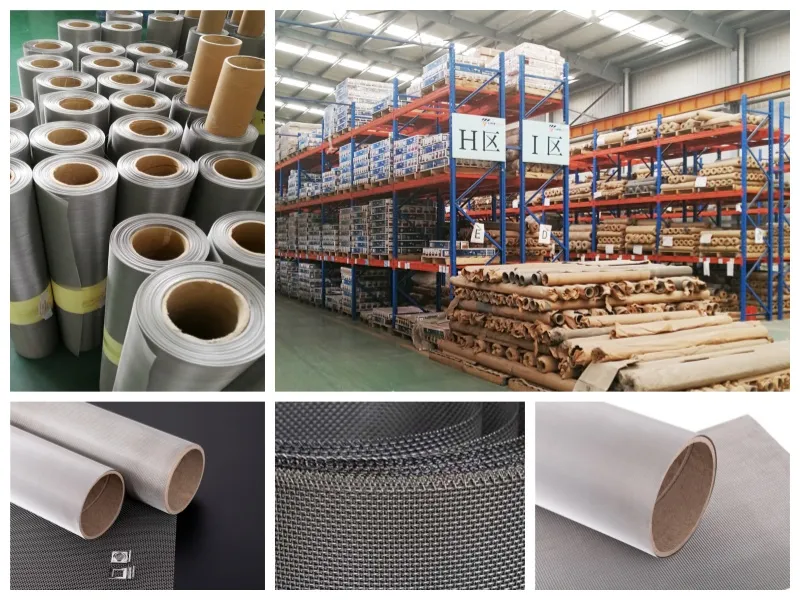

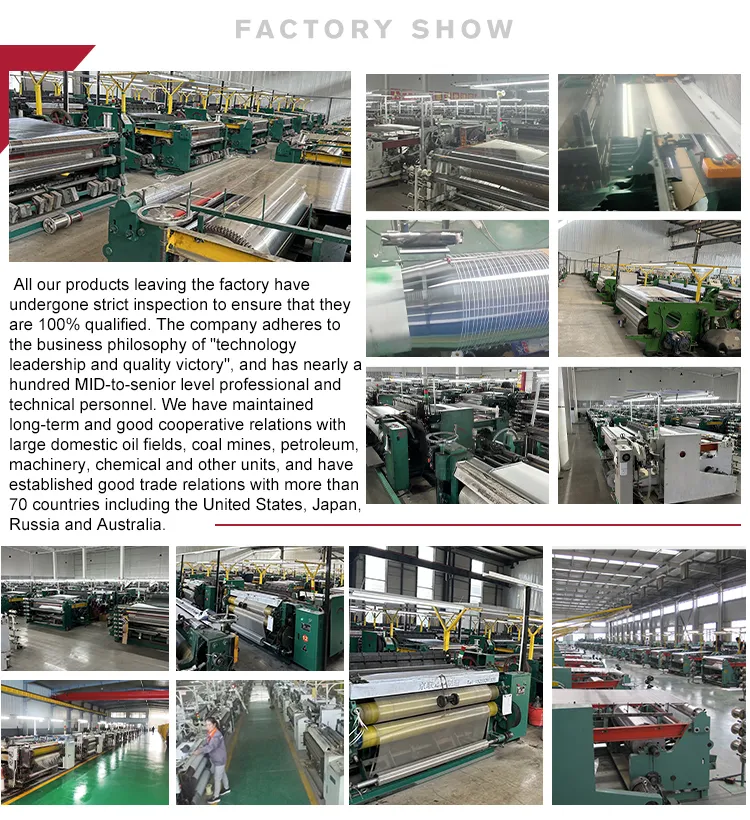

Company Showcase
-
