Twill Weave Wire Mesh: A Complete Guide for Industrial Applications

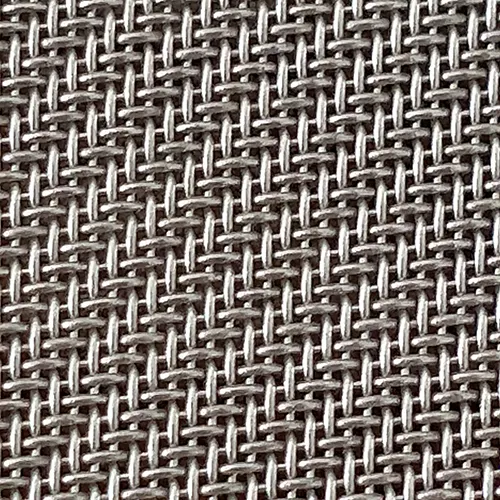

Twill weave wire mesh is produced by passing each weft wire alternately over two and under two warp wires, creating a diagonal pattern across the mesh surface. This unique weaving structure increases the mesh’s strength and flexibility while maintaining precise filtration performance.

Characteristic Advantages

Compared with plain weave wire mesh, twill weave offers:

Higher load capacity
Better performance in high-pressure environments
Ability to weave finer meshes with thicker wires
Longer service life in abrasive conditions

Common Specifications

High Strength Structure: The interlocking twill pattern provides enhanced mechanical strength and load-bearing capacity.
Finer Filtration Capability: Supports higher mesh counts than plain weave, ideal for filtering fine particles.
Improved Durability: Resistant to wear, pressure, and deformation under harsh conditions.
Smooth Surface: The diagonal pattern allows smoother material flow and reduces clogging.
Material Versatility: Commonly made from stainless steel (304, 316), carbon steel, brass, and other alloys.

Twill Weave Wire Mesh				Twill dutch weave mesh main spec
Mesh	Wire Dia. (inches)	Wire Dia. (mm)	Effective area%	Mesh	Wire Dia. (inches)	Wire Dia. (um)	Effective area%
130	0.0086	0.11	31.2	20x250	0.25x0.20	119	17.6
150	0.066	0.1	37.4	40x400	0.19x0.12	63	15.4
165	0.048	0.1	44	50x600	0.12x0.09	50	17.2
180	0.058	0.08	33.5	80x700	0.11x0.08	30	9.8
200	0.05	0.076	36	90x760	0.10x0.07	25	9.6
220	0.048	0.066	33	200x600	0.07x0.05	23	12
230	0.035	0.071	46	100x850	0.10x0.063	22	10
250	0.04	0.061	36	130x1100	0.07x0.05	17	9.5
270	0.04	0.055	38	165x800	0.07x0.05	15	13.5
300	0.03	0.053	40.1	200x1400	0.050x0.032	10	9.2
325	0.04	0.043	30	250x1600	0.05x0.032	8	3.8
400	0.025	0.038	36	300x2100	0.036x0.025	6	6
500	0.025	0.028	25	325x2300	0.036x0.025	4	4.2
635	0.022	0.015	14.5	400x2800	0.03x0.018	3	4.7

Application Area

Due to its superior strength and filtration performance, twill weave wire mesh is widely used in various industries:

Filtration Systems: Oil, fuel, and hydraulic filtration
Chemical Processing: Separation and purification of chemicals
Food Industry: Fine particle screening and liquid filtration
Mining and Metallurgy: Screening of powders and minerals
Aerospace and Automotive: High-performance filtration components

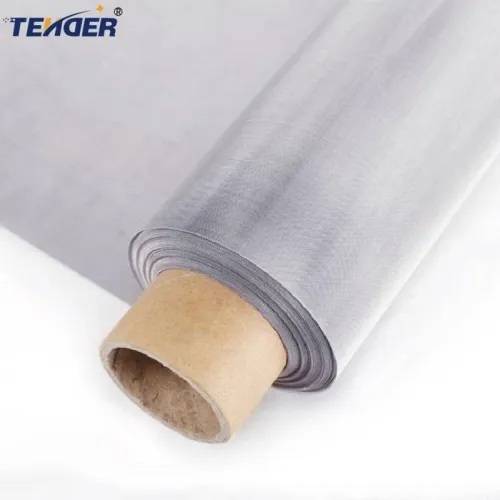

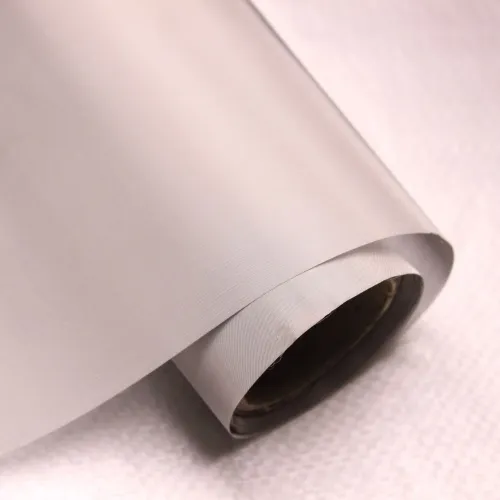

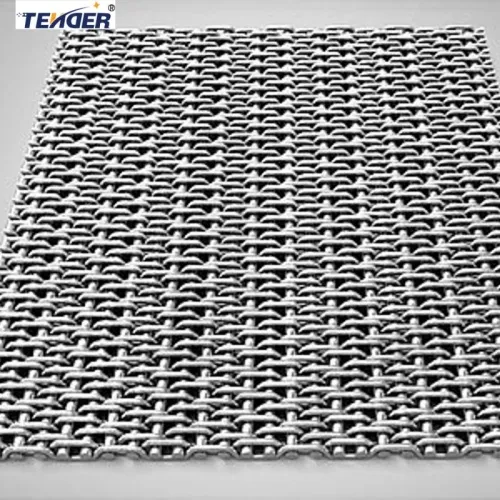

Product Showcase

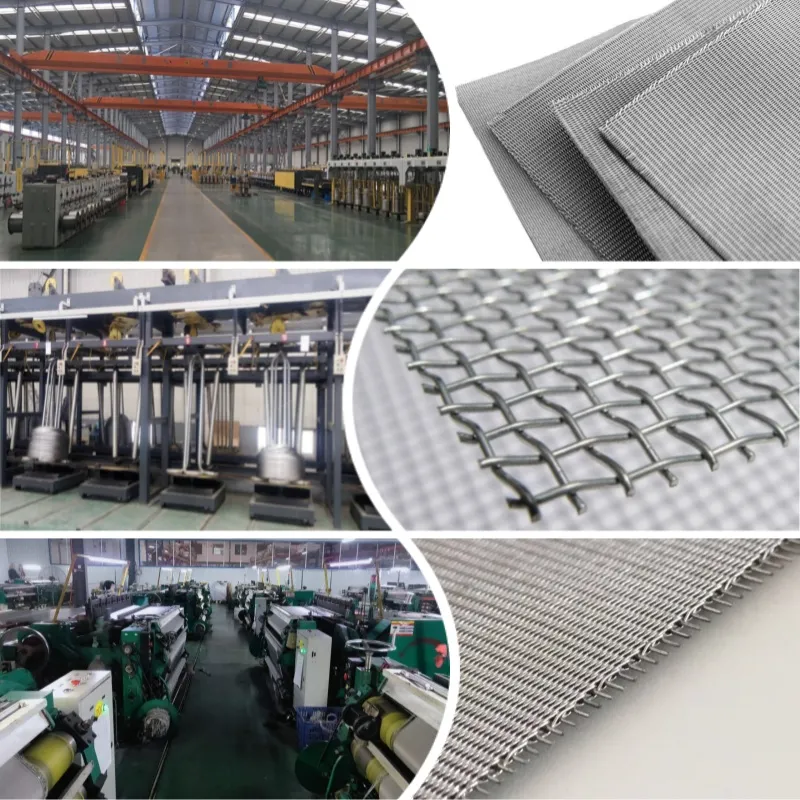

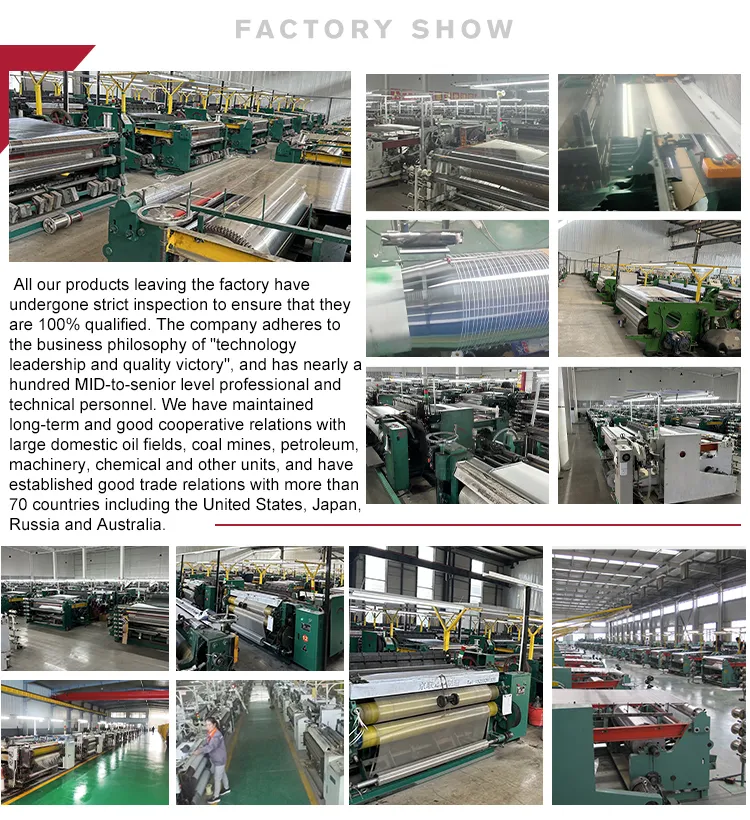

Company Showcase
