Characteristic Advantages
Strong welded points and bright luster .
The mesh does not come loose even if cut in parts or being exerted force on parts .
Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust.
-
Common Specifications
Mesh
Wire Diameter
inch
mm
gauge
1 × 1
25 × 25
14-11
2 × 1
50 × 25
14-8
2 × 2
50 × 50
14-8
3 × 2
75 × 50
14-6
3 × 3
75 × 75
14-6
4 × 2
100 × 50
14-4
4 × 4
100 × 100
14-4
5 × 5
125 × 125
14-4
6 × 6
150 × 150
14-4
Table 1: Common Specification of Galvanized Welded Mesh Panels
Hole Size (mm)
Wire Diameter (mm)
Width
50 × 50
3.5
0.5-2.4 m
50 × 100
3.5
100 × 200
3.5
50 × 75
4.0
100 × 100
4.0
50 × 180
4.5
150 × 150
4.5
200 × 200
5.0
100 × 200
5.0
The form of hole can be divided into rectangle and square. Hole size, wire diameter, length and width according to the customers'need to design and produce.
Specification of Stainless Steel Welded Mesh Panels
Mesh Size
Wire Diameter
12.7 mm
1/2" × 1/2"
1.0-2.0 mm
25.4 mm
1" × 1"
1.5-3.5 mm
38.1 mm
1-1/2" × 1-1/2"
2.0-5.0 mm
50.8 mm
2" × 2"
2.0-6.0 mm
76.2 mm
3" × 3"
3.0-7.0 mm
101.6 mm
4" × 4"
3.0-8.0 mm
127 mm
5" × 5"
4.0-9.0 mm
152.4 mm
6" × 6"
4.0-10.0 mm

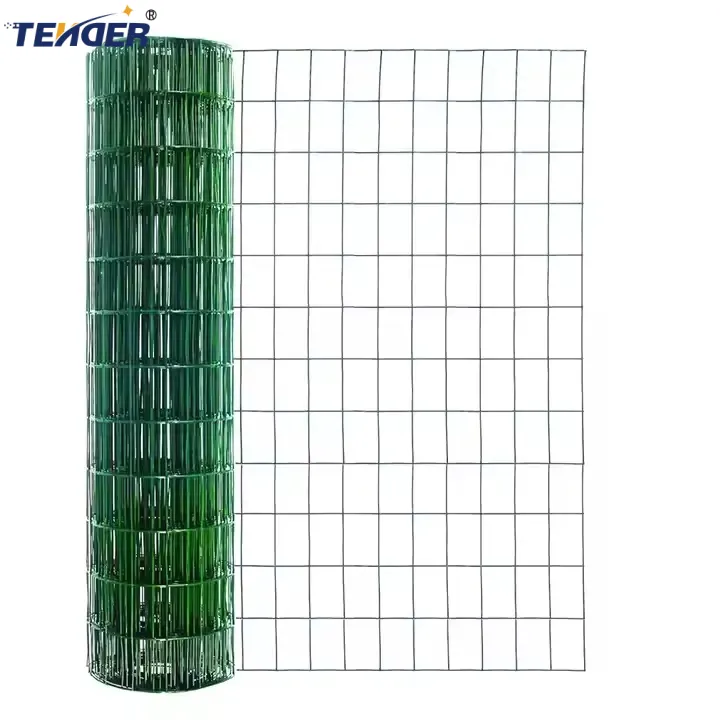

PVC Coated Welded Wire Mesh Panels
Wire Gauge (SWG)
Opening (inch)
Length (m)
8
4.06
2
9
3.65
2
10
3.25
2
11
2.95
2
12
2.65
2
13
2.34
2
14
2.03
2
-
Application Area
They are widely used in machine protection cover, ranch fence, garden fence, window protection fender, passage fender ,poultry case, rodent resistant mesh, mechanical shield, livestock and plants guardrail and fences, industry, agriculture, construction, transportation and mining industry,etc.
-
