Characteristic Advantages
One of the key advantages of stainless steel mesh cloth is its outstanding corrosion resistance, allowing it to perform well in humid, acidic, and alkaline conditions without rusting.
It also offers high temperature resistance, making it suitable for applications involving extreme heat.
The mesh features precise and consistent openings, ensuring accurate filtration and screening performance.
Additionally, it has excellent strength and durability, providing a long service life with minimal maintenance.

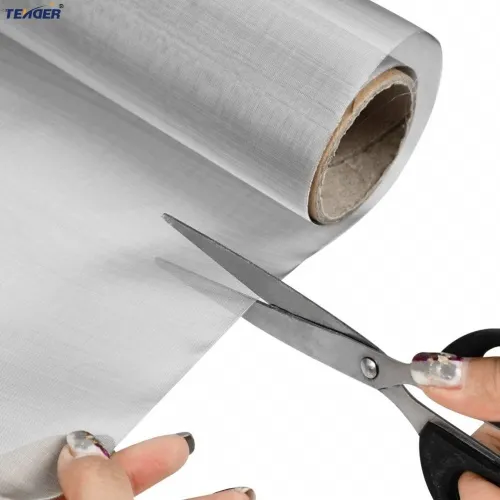

Its flexibility and ease of fabrication allow it to be cut, shaped, and installed according to specific requirements.
Furthermore, stainless steel mesh cloth is environmentally friendly, reusable, and easy to clean, making it a cost-effective solution over time. -
Common Specifications
Plain Dutch Weave Wire Cloth Mesh/Inch
(warp×weft)Wire Dia.
warp×weft
(mm)Reference
Aperture
(um)Effective
area%Weight
(kg/sq.m)7 x 44 0.71x0.63 315 14.2 5.42 12×64 0.56×0.40 211 16 3.89 12×76 0.45×0.35 192 15.9 3.26 10×90 0.45×0.28 249 29.2 2.57 8 x 62 0.63x0.45 300 20.4 4.04 10 x 79 0.50x0.335 250 21.5 3.16 12 x 89 0.45x0.315 212 20.6 2.86 14×88 0.50×0.30 198 20.3 2.85 14 x 100 0.40x0.28 180 20.1 2.56 16 x 100 0.40x0.28 160 17.6 2.64 17 x 125 0.35x0.25 160 23 2.14 18 x 112 0.35x0.25 140 16.7 2.37 20 x 140 0.315x0.20 133 21.5 1.97 20 x110 0.35 x 0.25 125 15.3 2.47 22 x 120 0.315x0.224 112 15.7 2.13 24 x 110 0.35×0.25 97 11.3 2.6 25 x 140 0.28x0.20 100 14.6 1.92 30 x 150 0.25x0.18 80 13.6 2.64 35 x 175 0.224x0.16 71 12.7 1.58 40 x 200 0.20x0.14 60 12.5 1.4 45 x 250 0.16x0.112 56 15 1.09 50×280 0.16×0.09 55 20 0.98 60 x 270 0.14x0.10 39 11.2 1.03 70 x 390 0.112x0.071 40 16.2 0.72 80×400 0.125×0.063 32 16.6 0.77 -
Application Area
In terms of applications, stainless steel mesh cloth is widely used for filtration, sieving, and separation in industries such as chemical processing, petroleum, pharmaceuticals, and food production.
It is also commonly applied in water treatment systems, air filtration, and oil filtration due to its reliable performance.
In construction and architecture, it is used for protective screens, facades, and decorative elements.
Additionally, it serves as a key material in mining, machinery, and agricultural equipment for screening and protection purposes.
With its combination of strength, precision, and durability, stainless steel mesh cloth is an ideal choice for demanding industrial applications. -

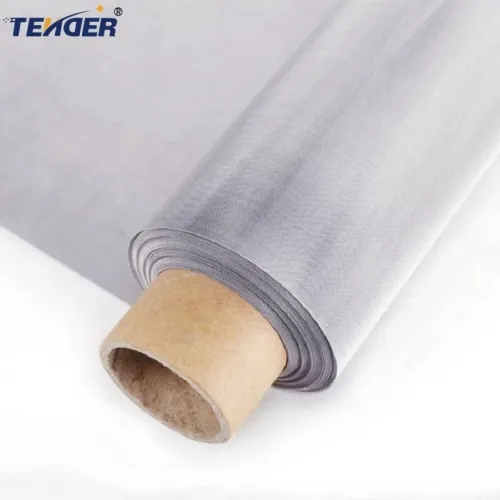

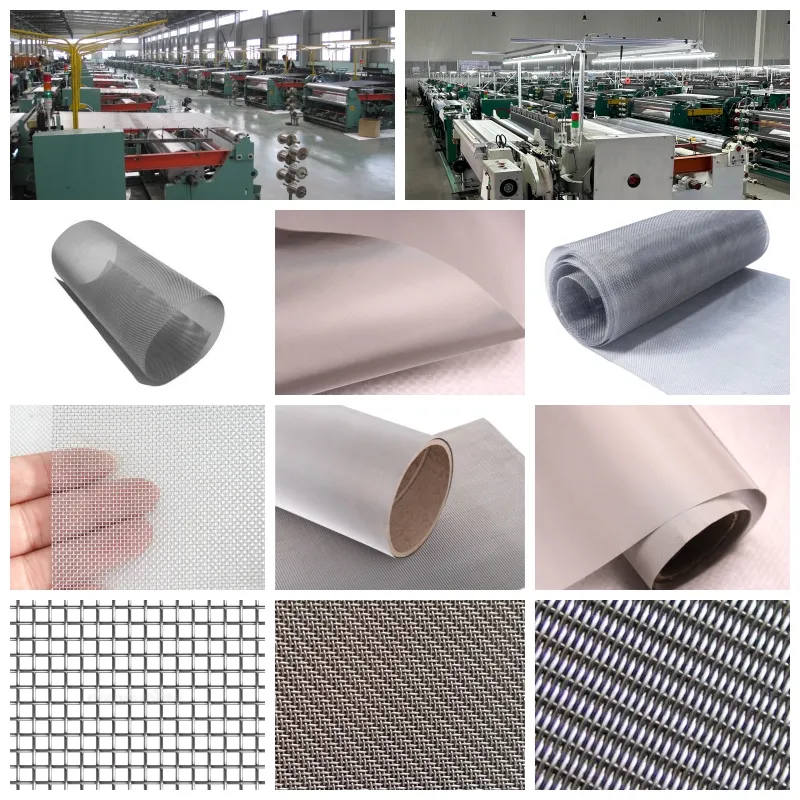

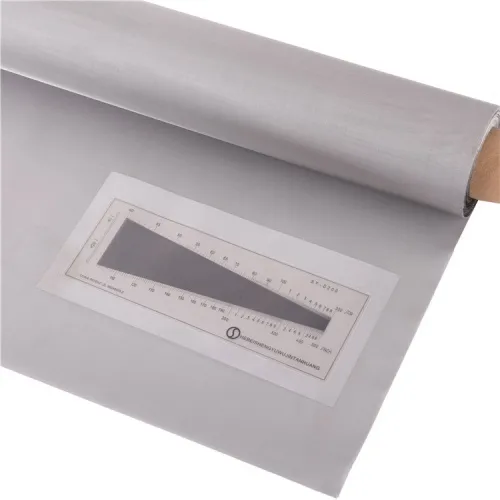

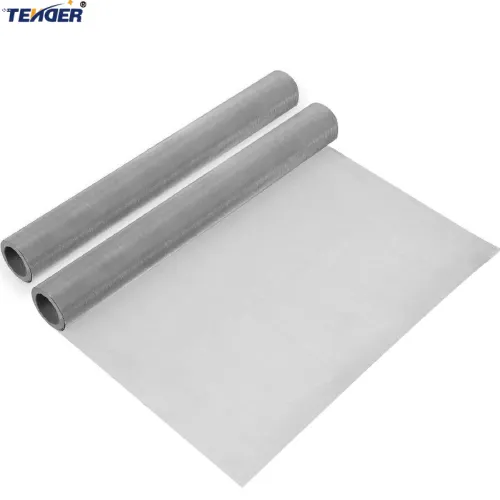

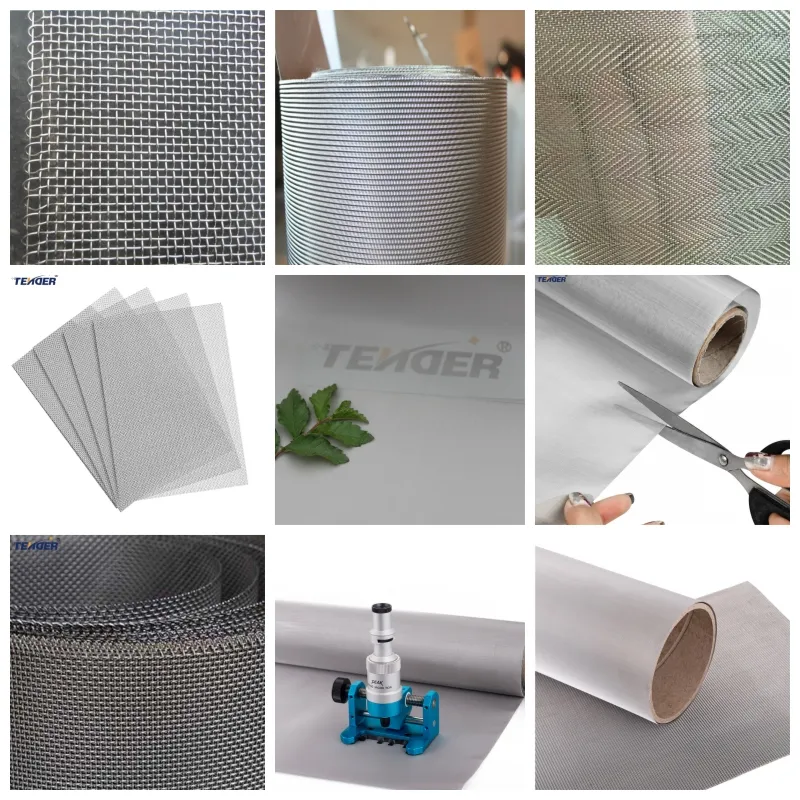

Product Showcase
-

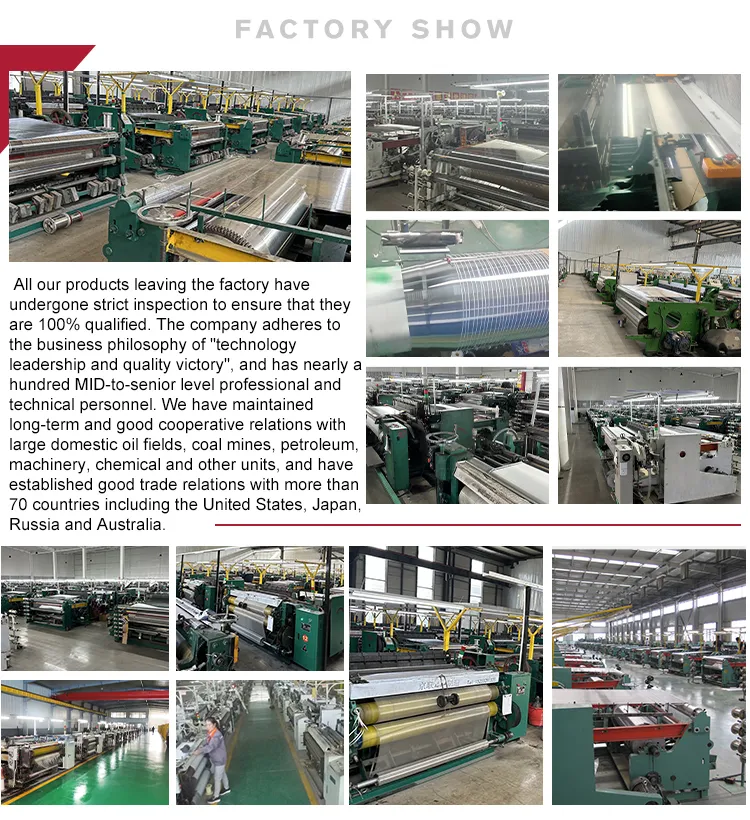

Company Showcase
-
