Characteristic Advantages
1. High Strength & Durability
Maintains structural integrity even with high open area.2. Excellent Ventilation & Light Transmission
Allows airflow, sound passage, and natural light.3. Corrosion Resistance
Especially strong when using stainless steel or coated materials.4. Aesthetic Appeal
Modern and customizable designs for architectural use.5. Lightweight & Easy Installation
Compared to solid metal panels. -
Common Specifications
Perforated Material: galvanized sheet, cold plate, stainless steel sheet, aluminum sheet, aluminum-magnesium alloy sheet.
Hole size: 0.5 mm – 100 mm

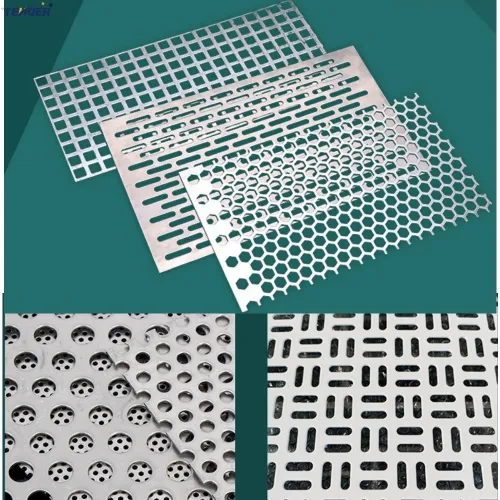

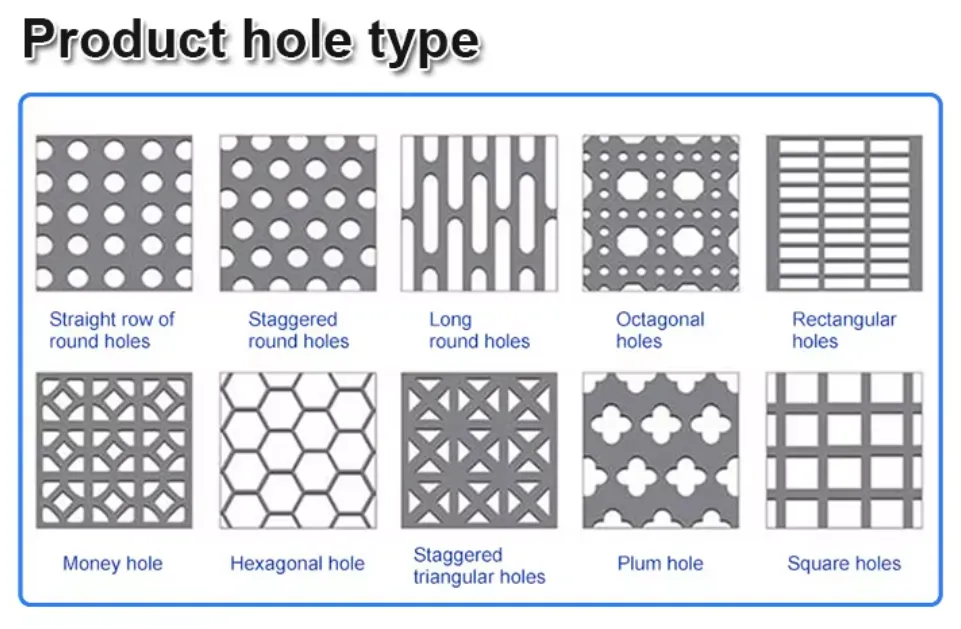

Perforated Hole type: round hole, oval hole, square hole, diamond hole, triangular hole, cross hole, hexagonal hole, plum blossom hole, fish scale hole, long waist hole and other holes can be customized.
Thickness: 0.2 mm – 10 mm
Panel size: Custom (standard 1m × 2m, 1.22m × 2.44m)
Surface treatment: Powder coating, anodizing, polishingPerforated Specifications
Hole Size (mm) center distance
(mm)Open Rate Plate thickness(mm) 0.5 mm 0.8 mm 1 mm 1.2 mm 1.5 mm 2 mm 2.5 mm 3 mm 4 mm 6 mm 0.8 2 0.15 * * 1 2 0.23 * * * 1.2 2.25 0.26 * * * 1.5 2.75 0.27 * * * * 1.8 3.5 0.24 * * * * * 2 3 0.4 * * * 2.5 5 0.23 * * * * * * * 3 5 0.33 * * * * * * 3.5 5 0.44 * * * * * 4 5 0.58 * * * 5 25 0.04 * * * * * * * * * 6 8.5 0.45 * * * * * * * 7 10 0.44 * * * * * * 8 11 0.48 * * * * * * 10 18 0.28 * * * * * * * * 12 16 0.51 * * * * * * * 15 21 0.46 * * * * * * * * 20 25 0.58 * * * * * * * * -
Application Area
Industrial Uses
- Filtration and screening systems
- Machine guards and safety covers
- Ventilation panels
- Noise control systems
Architectural Uses
- Building facades and cladding
- Ceiling panels
- Sunshade screens
- Balustrades and partitions
Agricultural & Other Uses
- Grain drying screens
- Animal enclosures
- Decorative fencing
-

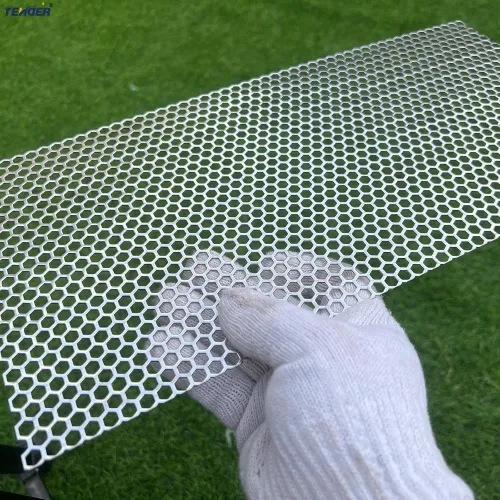

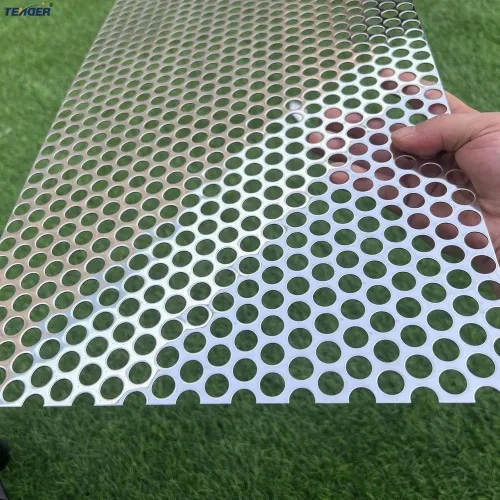

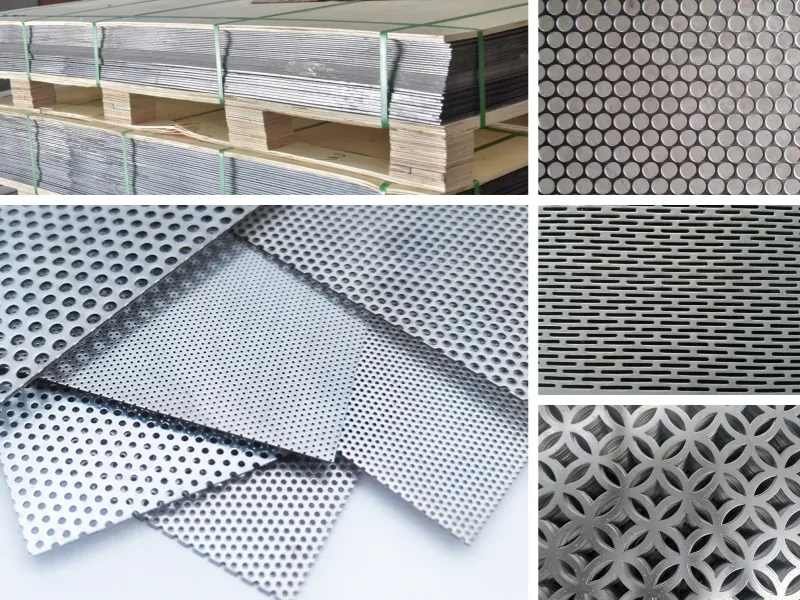

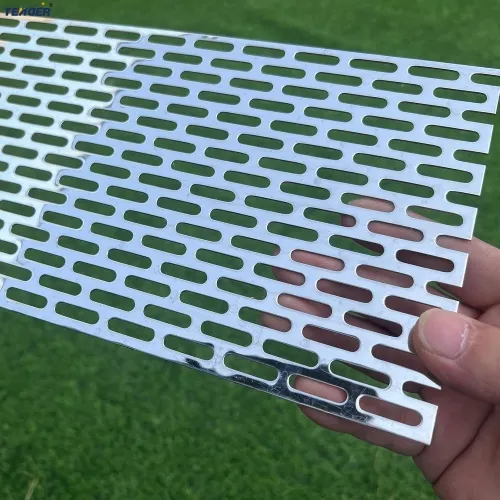

Product Showcase
-
