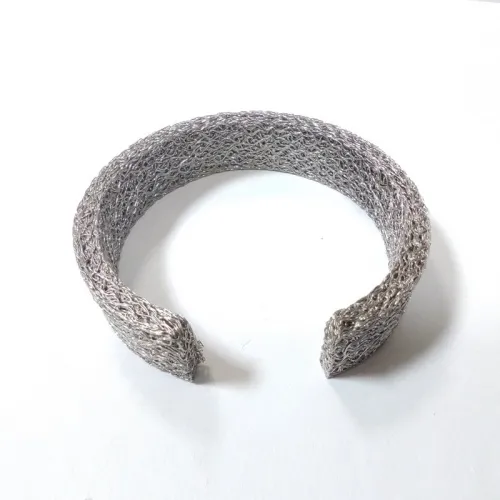

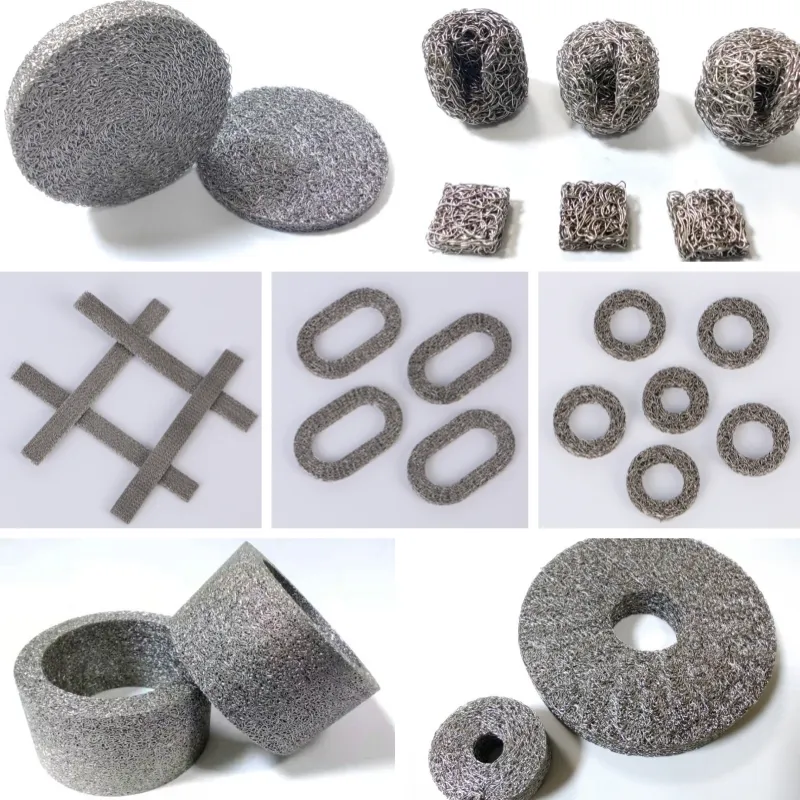

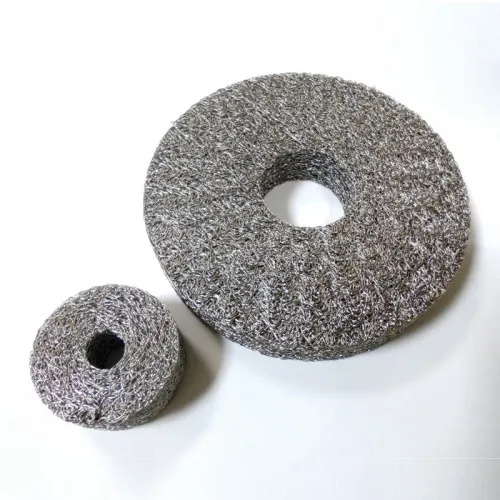

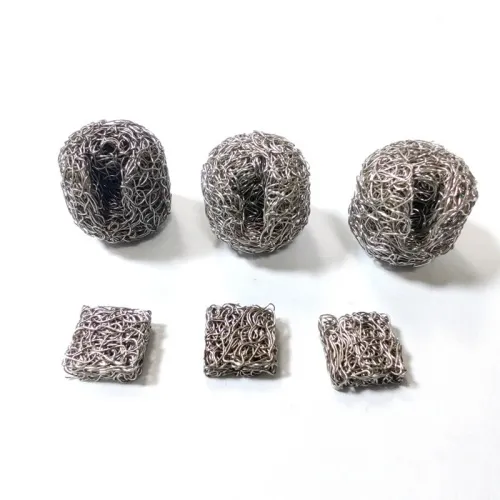

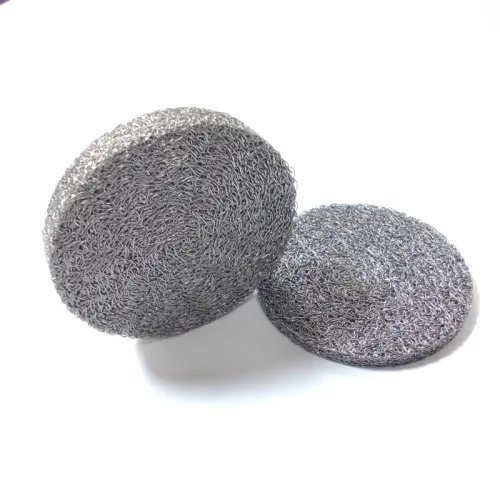

knitted wire mesh washer

Knitted wire mesh washers offer several key advantages:

Excellent Flexibility – The interlocked wire structure allows easy compression and recovery, ensuring a tight seal.
Strong Filtration Performance – The porous design effectively captures particles while allowing fluid or air to pass through.
Corrosion Resistance – Made from materials like stainless steel or copper, they perform well in harsh environments.
High Temperature Resistance – Suitable for applications exposed to extreme heat.
Vibration and Noise Reduction – Absorbs shock and reduces mechanical noise.
EMI/RFI Shielding – Provides effective electromagnetic interference protection.
Long Service Life – Durable structure ensures reliable, long-term performance.

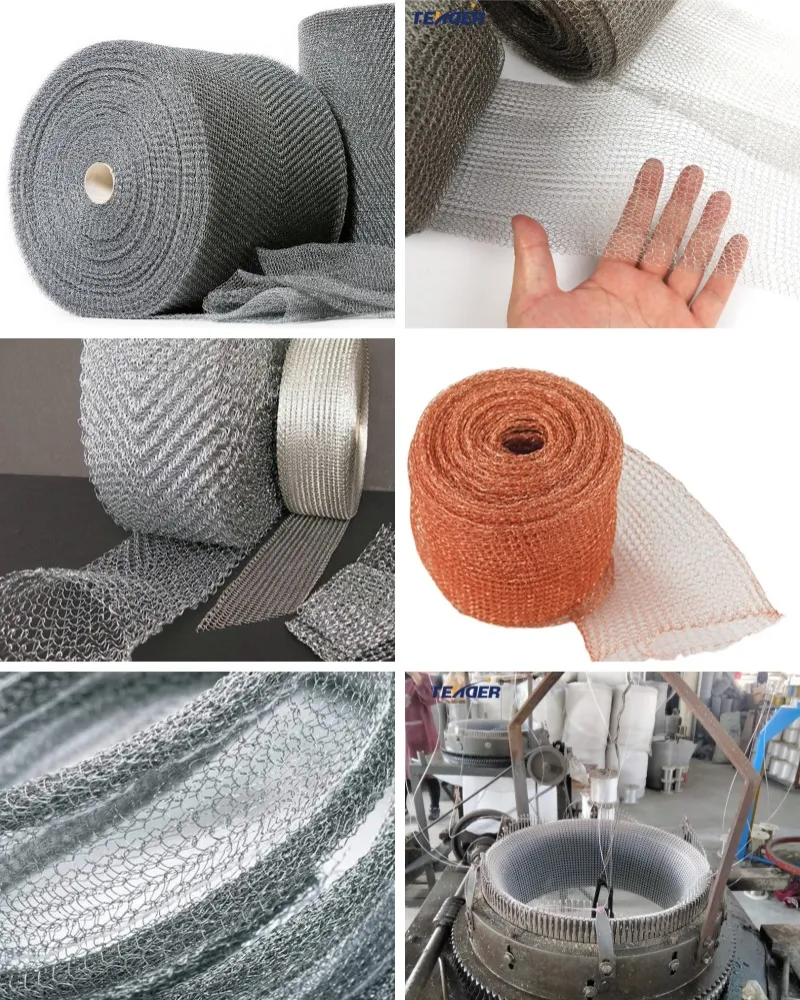

Knitted wire mesh is made by knitting machine similar to jumpers and scarves machine. The final knitted mesh is in the structure of inter-connecting loops, and it is similar to a long knit sock. We can produce multi- filament, co-knit and multi-strand knitted wire meshes. Our knit wire diameter is commonly range from 0.11 mm to 0.35 mm. But for special applications, knit wire as small as 0.03 mm or as large as 0.8 mm in diameter is available.

        Material

        Steel & Alloy

• Carbonsteel/SS304/SS316/SS316L/SS310S/SS304M
• Nickel/Titanium/Brass/Copper/Cr20Ni80/Cr20Ni50/Inconel

• Density

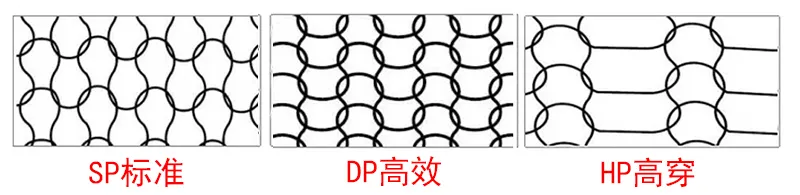

• 	Type	Wire diameter (mm)	Bulk Density (kg/m3)	Specific Surface Area (m2/m3)	Voidage
  SP	Flat Wire	0.1× 0.4	168	475	0.9788
  	Round Wire	0.23		320
  DP	Flat Wire	0.1 × 0.3	186	626	0.9765
  	Round Wire	0.19		484
  HR	Flat Wire	0.1 × 0.4	134	313	0.9875
  	Round Wire	0.23		217
  HP	Round Wire	0.08–0.22	128	403	0.9839

•

Knitted wire mesh washers are widely used in various industries due to their versatility and performance:

Automotive Industry – Used in exhaust systems, sealing rings, and vibration damping components.
Filtration Systems – Applied in liquid and gas filtration to remove impurities and particles.
Electronics – Used for EMI/RFI shielding to protect sensitive equipment from interference.
Aerospace – Utilized in high-temperature and high-pressure environments for sealing and filtering.
Petrochemical Industry – Used in pipelines and equipment for corrosion-resistant filtration and sealing.
Machinery & Equipment – Acts as shock absorbers and noise reduction elements in mechanical systems.
Industrial Sealing – Provides reliable sealing in pumps, valves, and compressors.
