Characteristic Advantages
Plain Weave Mesh Advantages
Compared with other weaving types (like twill or Dutch weave), plain weave wire mesh is cost-effective, easy to manufacture, and suitable for general-purpose applications where moderate filtration and strength are required.
Plain Weave Mesh Key Features
Uniform and precise openingsHigh mechanical strengthGood stability and durabilitySmooth and flat surfaceExcellent resistance to corrosion (especially stainless steel) -
Common Specifications
Plain Weave Wire Mesh Plain Dutch Weave Wire Cloth Mesh Wire Dia. (inches) Wire Dia. (mm) Effective
area%Mesh Wire Dia. (inches) Wire Dia. (um) Effective
area%1 0.135 3.5 21.97 7 x 44 0.71x0.63 315 14.2 5 0.08 2 3.04 12×64 0.56×0.40 211 16 10 0.02 0.5 2.03 10×90 0.45×0.28 249 29.2 50 0.009 0.23 0.28 14×88 0.50×0.30 198 20.3 100 0.0045 0.11 0.15 16 x 100 0.40x0.28 160 17.6 180 0.002 0.05 0.09 17 x 125 0.35x0.25 160 23 200 0.002 0.05 0.076 18 x 112 0.35x0.25 140 16.7 250 0.0016 0.04 0.061 20 x 140 0.315x0.20 133 21.5 270 0.0014 0.04 0.055 24 x 110 0.35×0.25 97 11.3 300 0.0012 0.03 0.053 30 x 150 0.25x0.18 80 13.6 325 0.0014 0.04 0.043 35 x 175 0.224x0.16 71 12.7 400 0.001 0.025 0.038 40 x 200 0.20x0.14 60 12.5 500 0.001 0.025 0.028 45 x 250 0.16x0.112 56 15 635 0.0009 0.022 0.015 50 x 250 0.14x0.10 50 14.6 -
Application Area
Industrial filtration and sieving
Chemical and petroleum processing
Food and pharmaceutical screening
Window screens and insect protection
Architectural and decorative uses -

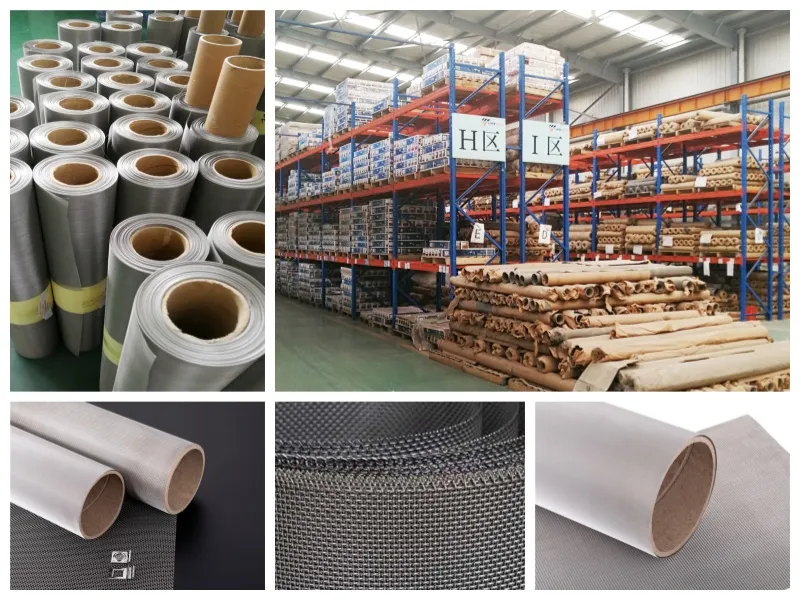

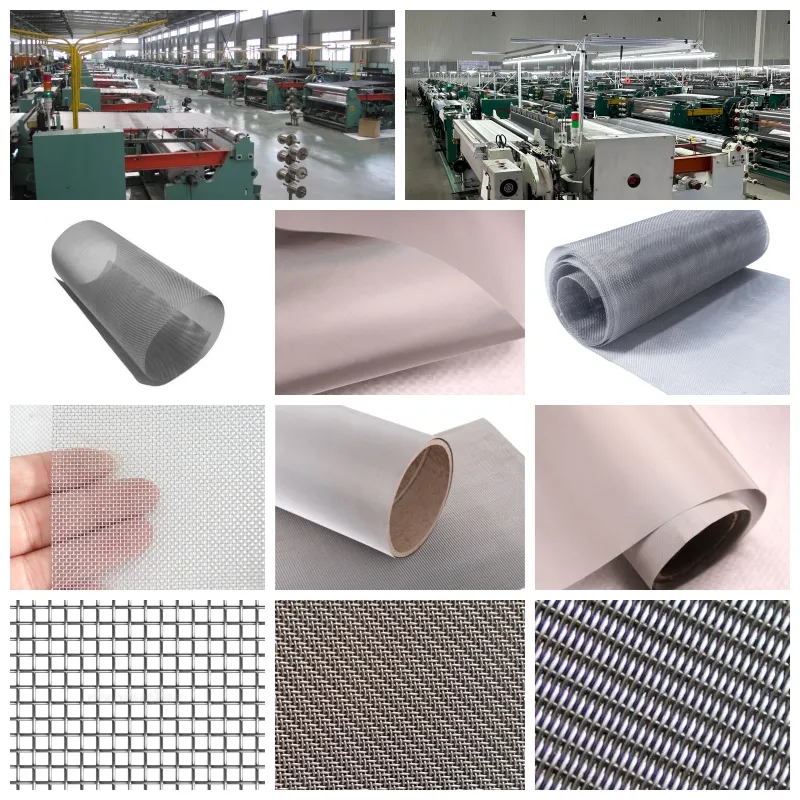

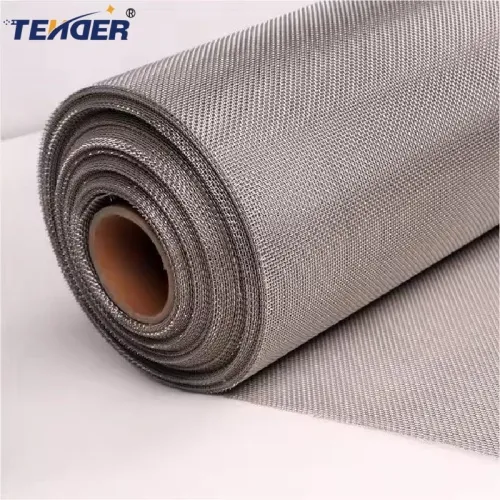

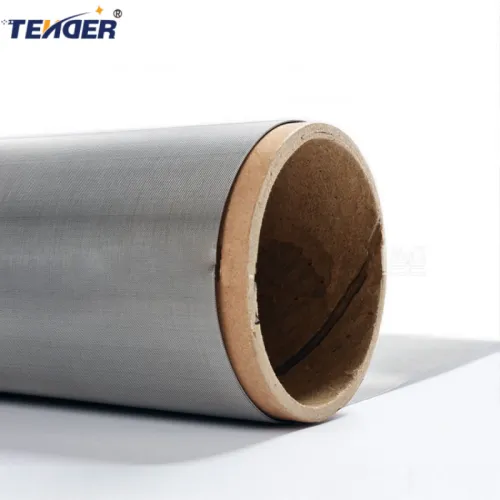

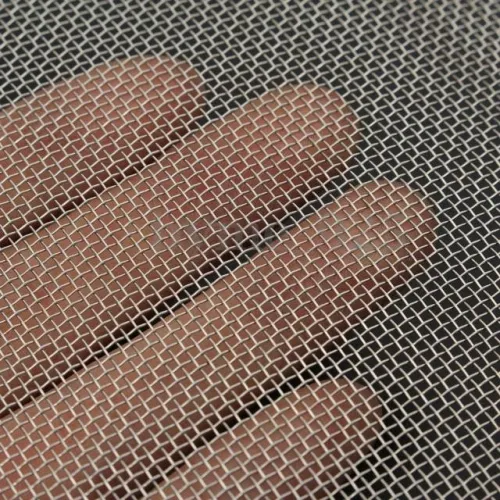

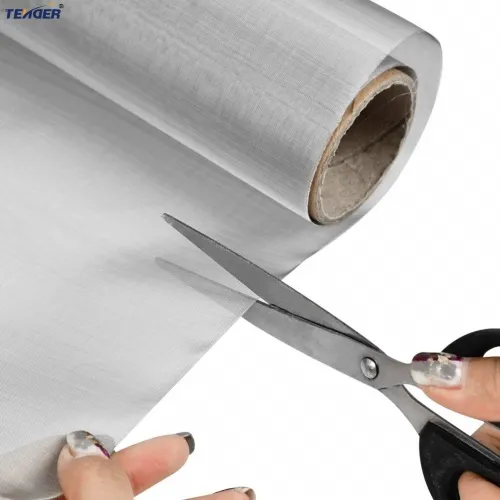

Product Showcase
-
