Window Screen Mesh

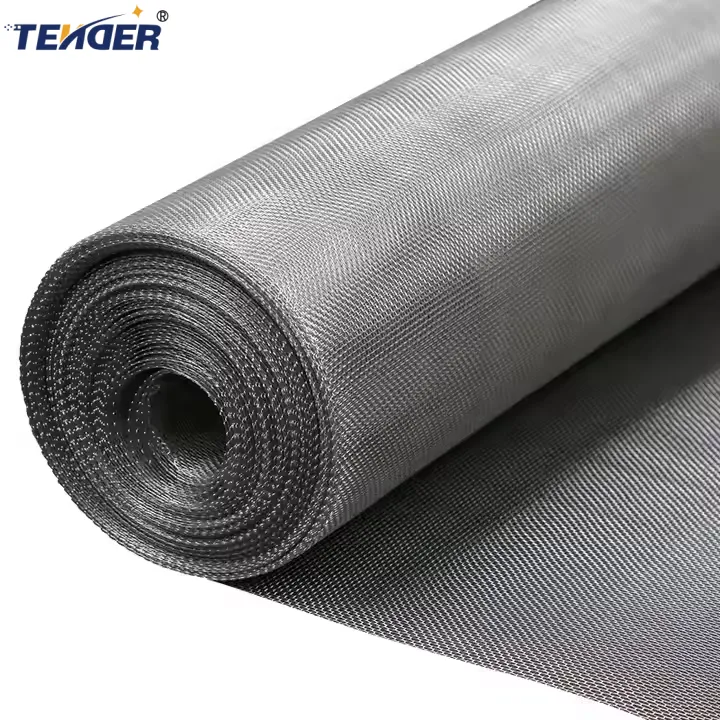

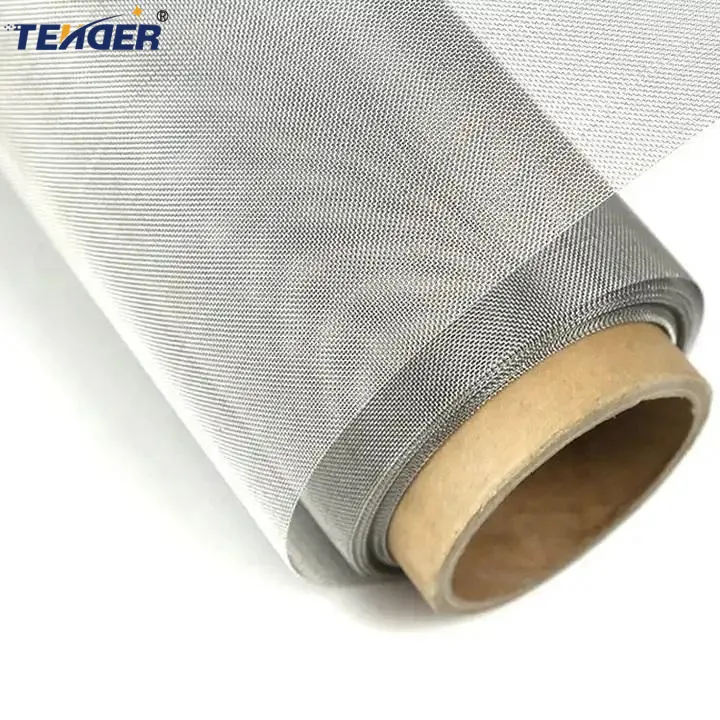

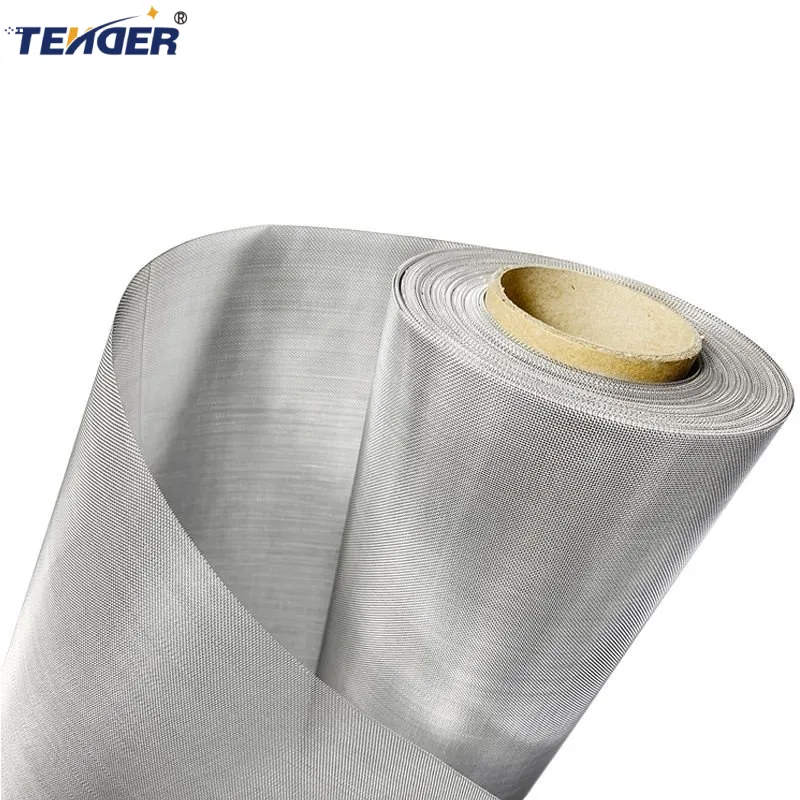

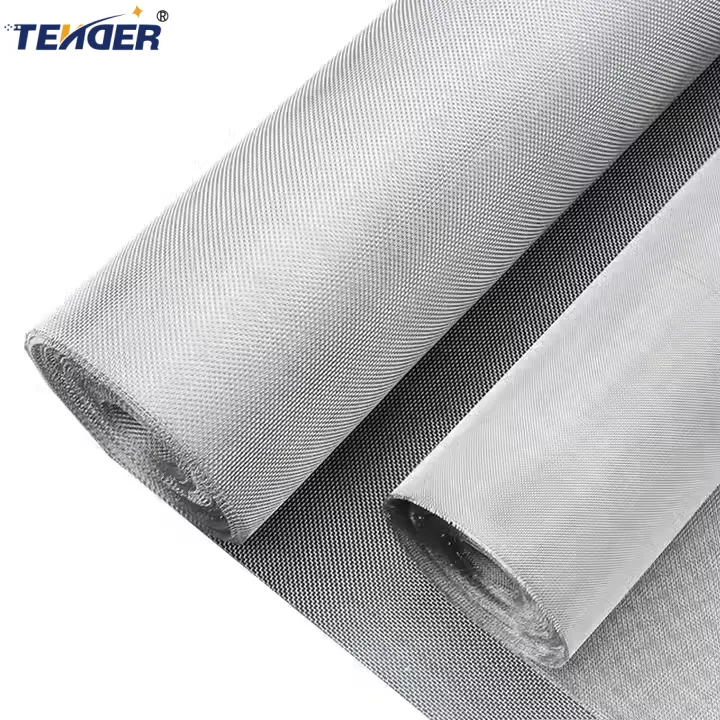

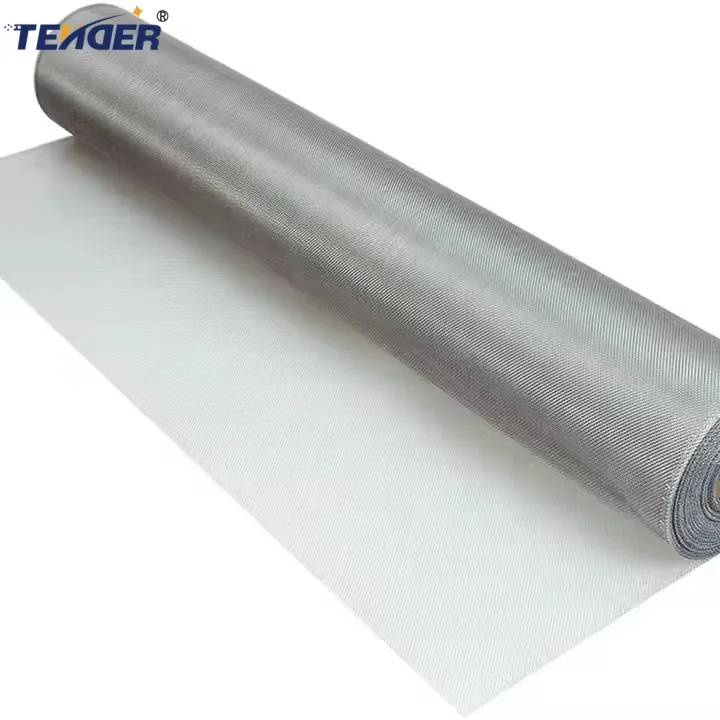

Stainless Steel Window Screen is made of plain weaving technology, with good air permeability, light transmission and other properties, is the substitute of ordinary nylon window screen in China. This product is high grade, wide use, is the first choice of doors and windows protection products for high-grade office buildings, residential buildings and various buildings, livestock farms, orchards. Breathable and transparent, the product surface color bright and beautiful, compared with ordinary nylon window screen can better increase the rate of air circulation and sunlight irradiation. And Not blocking the light and not blocking the wind.

Characteristic Advantages

Environment friendly, beautiful appearance, convenient installation, strong adaptability, good durability, strong corrosion resistance, high safety, excellent protection.

Common Specifications

Specification List of Window Screen Mesh
Variety	Mesh/Inch	Wire Gauge	Roll Size	Technical Notes
Gal.Iron Wire Netting	10 x 10	BWG31 BWG32 BWG33 BWG34	3’x100’ 4’x100’ 1x25M 1.2x30M 1.5x25M	Process: Electric galvanized after weaving Color: White or blue white
	14 x 14
	16 x 16
	18 x 18
	18 x 14
	22 x 22
	24 x 24
Enamelled Iron Wire Netting	Same as above			Green or dark green
Aluminum Coated Iron Wire Netting	Same as above			Silver
Aluminum Wire Netting	Same as above			Material: Al-mg alloy or pure aluminum Painted aluminum wire netting epoxy resin paint
Fiberglass Wire Netting	12 x 12	BWG31 BWG32	3’x100’ 4’x100’ 1x25M 1.2x25M	Available in different colors
	14 x 14
	16 x 16
	16 x 14
PVC Wire Netting	12 x 12	As above		Twisted weaving:121416mesh; Plain weaving:182224mesh; Colors available:white,blue,green,etc.
	14 x 14
	16 x 16
	18 x 18
	18 x 14
	20 x 20
Stainless Steel Wire Netting	14 x 14	SWG38	3’x100’ 4’x100’ 1x25M 1.2x25M	Materials: Stainless steel 304316316L
	16 x 16	SWG37
	18 x 18	SWG36
	18 x 14	SWG35
	20 x 20	SWG34
PVC Coated Wire Netting	12x 12	BWG31 BWG32	As above	Different colors available. Used in petroluem, pipes wrapping.

Application Area

The window screen is perfect for all those custom projects around the house, yard, or office. Great for new and replacement window and door screens, porch or patio screens, insect, and pet screening.

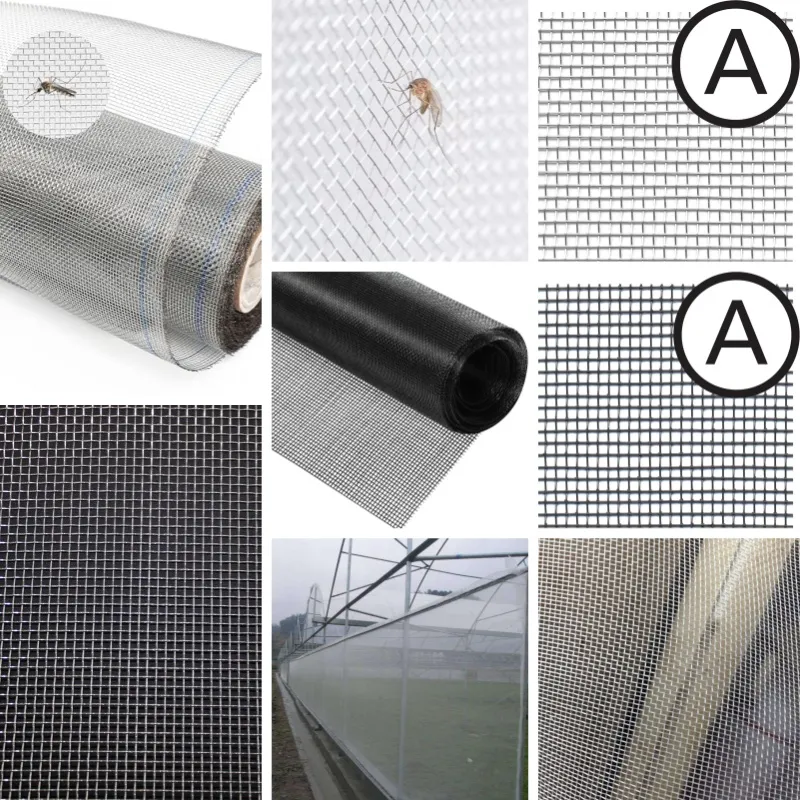

Product Showcase
